Hot & Cold Aisle Containment Systems

AMCO’s Hot Aisle and Cold Aisle Containment Systems prevent air mixing and establishes separation of hot exhausted air and cold supplied air. This results in efficiently cooling the equipment and not the room. With these air separation paths in place, the aisle containment systems can deliver a consistent inlet temperature within ASHRAE A1 recommended ranges, providing dramatic savings in capital and operational costs year after year.

All Containment Enclosures have a three-year warranty. Browse our website to learn more about the features of our hot aisle and cold aisle containment systems.

Features:

  • Flexible design
  • Cools the equipment and not the room
  • No need for piping of water/coolants to racks
  • Reduce your TCO and increase energy efficiency in the data center
  • Stop hot/cold air mixing
  • Limit inefficient oversupply of cold air
  • Aluminum framing system and clear UL Rated PVC insert panels let in natural lighting into the containment aisles
  • Works for both legacy and new data racks
  • Our hot and cold aisle containment solutions are available in 11 standard colors
  • Custom branding available

Hot/Cold Aisle:

Hot Aisle

AMCO’s Hot Aisle solution captures hot exhaust air at the aisle level. Our hot aisle containment solution has been designed to utilize our proprietary extrusions and castings along with clear polycarbonate panels that extend from the top of our racks to the exhaust plenum. Sliding or Swing Doors provide access to the row while preventing air mixing.

All Containment Enclosures have a 3 year warranty.

Hot Aisle Containment

  • Scalable design is configured to fit your data centers exact requirements
  • Slide or swing doors can be added to the ends of rows
  • Lowers overall room temperature and associated costs
Thermal Image of Cold Aisle Containment

Cold Aisle

Utilizing our proprietary aluminum framing system and clear UL rated PVC panels that shrink at 130 degrees; a ceiling completely encloses the cold aisle. This solution forces all of the cold air to pass through the electronic components in the rack, ensuring that the cold air does not mix with the hot air anywhere else in the data center.

All Containment Enclosures have a 3 year warranty.

Doors:

Sliding Doors

Dual sliding doors close off the ends of the aisles sealing in the hot or cold air. Aluminum doors have clear polycarbonate panel inserts for viewing. Doors slide open with a hold open feature on each side. Full slide tracks mount to the top and bottom of racks and provide support for the doors. Brush strips seal the perimeters to minimize airflow leakage and limit air mixing.

All Containment Doors have a 1-year warranty.

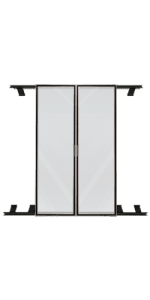

Sliding Doors (Closed)

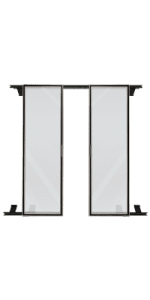

Sliding Doors (Open)
Swing Doors

Swing doors are available in single or double door models and close off the ends of the aisles, eliminating the cold and hot air mixing. Aluminum door frames have clear polycarbonate panel inserts for viewing. Perimeter of doors are sealed with brush strips to minimize airflow leakage and air mixing.

All Containment Doors have a 1-year warranty.

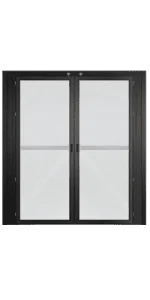

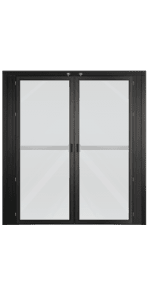

Swing Doors (Closed)

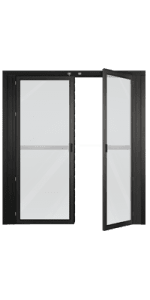

Swing Doors (Open)

Other Accessories:

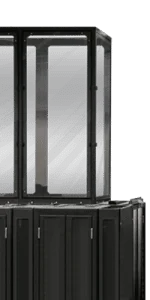

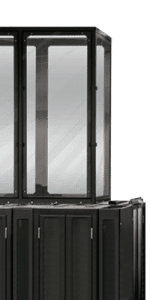

Hot Aisle Exhaust Duct

Part Number: HACYY-ZZ

  • XX=Duct Height
  • YY=Aisle Width
  • ZZ=Aisle Length

All Containment Accessories have a 1-year warranty.

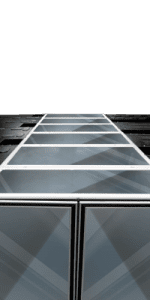

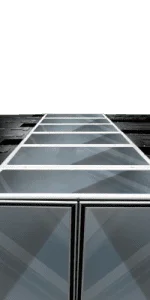

Cold Aisle Ceiling Tiles

Part Number: CACYY-ZZ

  • YY=Aisle Width
  • ZZ=Aisle Length

All Containment Accessories have a 1-year warranty.

Overhead Chimney Solution

Individual Rack Containment – Overhead Chimney Solution

AMCO’s overhead chimney solution for individual racks provides an alternate solution to complete aisle containment. The chimney heights can be adjusted and can be added at the time the racks are installed or at any time they are in a live environment. The retro-fit is fast and affordable, using solid door inserts, an air deflector, and the adjustable chimney.

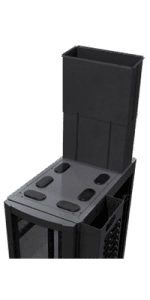

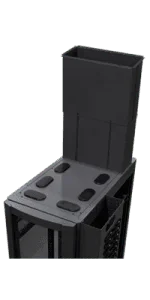

Rack Chimney

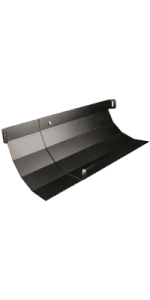

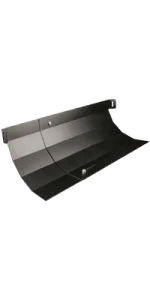

Air Deflector
