Universal Accessories

Shelves and Drawers:

Shelves

AMCO shelves are capable of supporting components up to 50 lbs. and our vented design helps keep your security equipment cool. Stationary models include solid, front face and vented. Vented shelves are available in RU heights of 1-5. Retractable shelves are vented and available in 2RU and 3RU. All shelves have the option to add a hold-down bracket. All AMCO shelves feature a durable black powder coat finish.

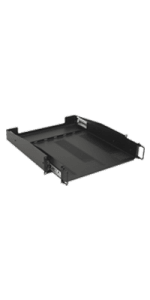

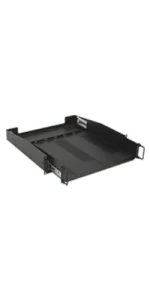

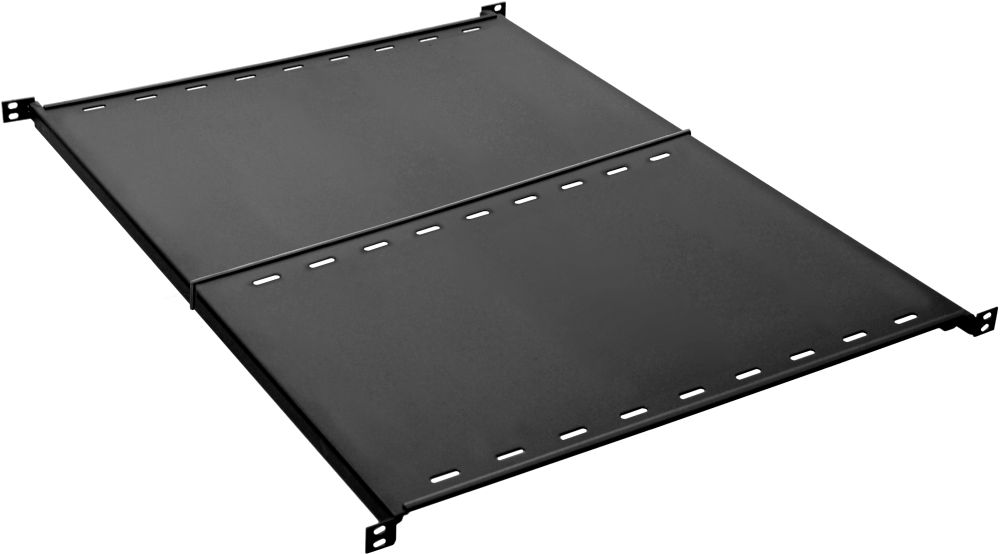

Adjustable Shelf

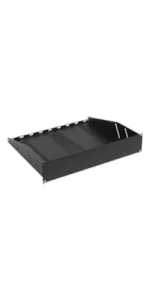

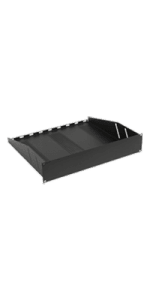

Solid Front Face Shelf

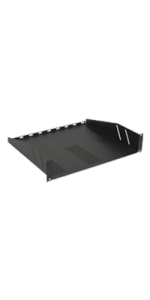

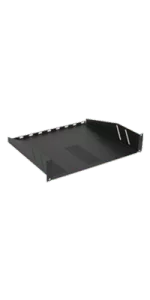

Vented Shelf

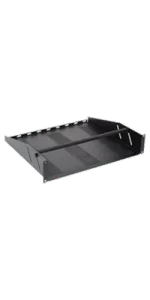

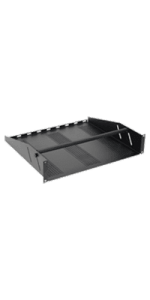

Vented Shelf with Hold Down Bracket

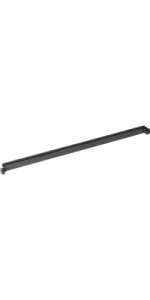

Hold Down Bracket
Drawers

Our drawers install easily to provide convenient storage for extra cables, remote controls or media. They are available with or without locks, in heights of 2RU, 3RU and 4RU. All drawers and lockboxes feature a durable black powder coat finish.

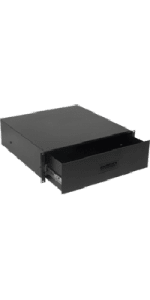

Solid Drawer

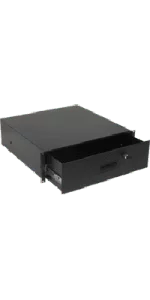

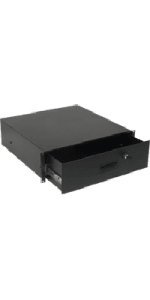

Solid Drawer with Lock

Cable Management:

Lacing Bars

Lacing bars mount horizontally and assist in cable tie-down and provide strain relief for cabling. Both the “C” and straight models have punched slots to accept cable ties. They are offered in straight, “C” style 2″, 4″, and 6″ depths, and round 2” depth. Lacing bars are available in packs of 5 and feature a durable black powder coat finish.

Straight
“C” Style 2″ depth
“C” Style 4″ depth
“C” Style 6″ depth
Round
Lacing Strips

AMCO has an extensive variety of flexible cable management accessories to manage your cabling requirements. Our lacing strips are 5” wide and come in the same corresponding RU heights as the racks. They are perfect for vertical cable bundle tie-downs or mounting power strips. They feature a multi-punched hole pattern for M6 hardware mounting or cable ties.

AMCO adjustable lacing strips are available in 1RU and 2RU heights and depths of either 14”- 21” or 25”-37”. These lacing strips mount front to rear, or in the panel-opening space to tie down cabling. Both the 5” lacing strips and the adjustable lacing strips feature a multi-punched hole pattern for M6 hardware mounting or cable ties. All lacing strips feature a durable black powder coat finish.

Vertical Lacing Strip 5″ Wide
1RU Adjustable Lacing Strip
2RU Adjustable Lacing Strip

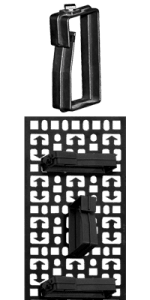

Cable Ring Kit

Cable rings easily mount to M6 holes in power/cable panels or cable lacing strips and provide an immediate tie-down point for cabling. Sold in packs of 10.

Cooling:

Fan Stacks

Fan Stacks – Ultra Quiet-Fans with Front Exhaust
AMCO fan stacks cool hot spots in your rack. This 1RU fan tray mounts to specific hot zones in your rack and features two ultra-quiet fans (27db) that turn on from 83-85º. The unit is 115V/15-amp, delivers 120CFM of cooling and is available in depths of 8” and 14”. Unit includes a 5-ft. power cord and durable black powder coat finish.

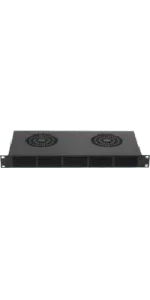

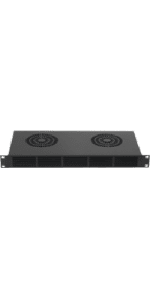

Fan Stack 8″ Depth
Fan Stack 14″ Depth
Fan Panels

Fan Panels- Ultra Quiet Fans with Display
Fan panels come standard with static or adjustable digital temperature management. Static panels feature an 83-85 º set point, ensuring that your security components will operate at peak performance. Fan panels are 115V/15-amp and include ultra-quiet fans (27db). Adjustable thermostat fan panels come standard with a digital display. All fan panels include a 5-ft. power cord and a durable black powder coat finish.

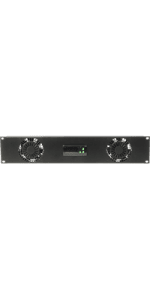

Fan Panel with Display 2RU and 2 Fans

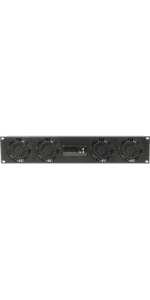

Fan Panel with Display 2RU and 4 Fans
Fan Panel with Display 3RU and 2 Fans

Power:

Basic Power

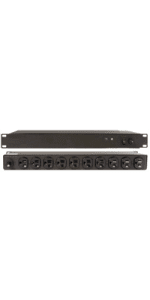

IC-Junior Economical power distribution with 6 outlets and 15-amp capacity. Base level spike and notice suppression.

IC-8 Series is basic power distribution for rack mounted equipment. Base level spike and noise suppression.

IC-8LM has two dimmable rack lights that slide into the chassis when not in use, plus a 20 segment color coded voltage meter which indicates low, acceptable or high levels of AC mains voltage.

Our one 12-outlet 115V/15-amp power strip for vertical mount or one 6-outlet 115V/15-amp for horizontal mount is available. All power strips include a 10 ft. cord. Other power strips are available. Contact your local sales representative for more information.

IC-Junior Economical Power Supply

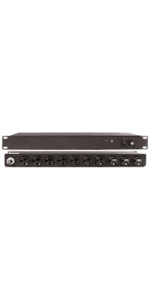

IC-8 Basic Power Distribution
IC-8L Basic Power Distribution with Lights
IC-8LM Basic Power Distribution with Lights and Voltage Meter

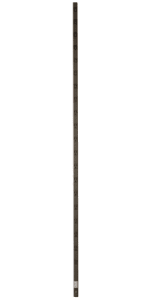

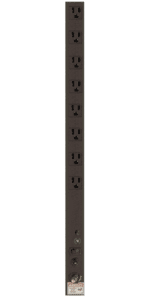

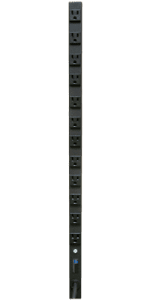

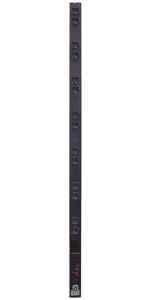

Vertical Power Strip 48″Long

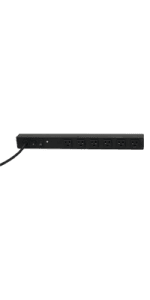

Horizontal Power Strip 17″ Long
Enhanced Power

IC-11-15A has 11 outlets total. One not switched and 9 switched on the back, and 1 not switched on the front. There is a circuit breaker on the front of the chassis and there is a base level spike and noise suppression. This includes a power cord with a NEMA5-20P plug on IC-11-20A.

IC-11-15A Enhanced Power Supply
IC-11-20A Enhanced Power Supply
Web Based Power

The AMCO Enclosures IC-IP-1520 is a micro-controller based power distribution device that can be accessed via internet or intranet communications using Ethernet or RS232 connection. With this remote access, individual AC receptacles can be turned on and off and monitored for electrical current flow.

  • The IC-IP-1520 has a twenty amp capacity and provides AC line conditioning and surge protection.
  • The IC-IP-1520 provides economical web or intranet based remote power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually from anywhere in the world. In addition, current draw can be monitored from 0.2 to 20.0 amps per power POD.
  • The IC-IP-1520 can be controlled by the on board web server graphic interface that can be accessed by any web browser. It can also be remote controlled by RS232 connection to commercial or proprietary control systems.
Web Based Power Control System
Sequenced Power
  • ICR-1500 3 Sequence 15-amp power best suited for single rack systems. Provides timed sequence up and sequence down. Can be remote controlled with latching contact.
  • IC-1520 3 Sequence 20-amp AC power with self-contained control circuit. Works alone or plug and play with other IC units. Local or remote activation with contact closure or IC5.
  • IC-2200 20-amp 2 sequence device for hard wired installation. Good for small systems requiring only 2 sequences. Also good for staging amplifiers on single circuit.
  • IC-PD1-4 Contains 4 sequenced 20-amp circuits which can be wired directly to a breaker panel. Plug and play with other AMCO devices.
ICR-1500 3 Sequence Power
IC-1520 3 Sequence Power
IC-2200 2 Sequence Power
IC-PD1-4 4 Sequence Power
Surge Protection Power

Surge protection power strips are ideal for smaller environments that don’t have protective surge suppression at the facility level, or just when additional protection is needed. Parallel circuitry keeps our Surge protection power strips working even if a surge or spike disables surge suppression.

PDU2408N-15-120P1-1510NSP

Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU2408N-15-120P1-1515NSP

Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P

PDU4814N-15-120P1-1510NSP

Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered, 10 ft. power cord with 5-15P

PDU6620N-15-120P1-1510NSP

Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU6620N-20-120P1-2010NSP

Surge, 20A, 120V, Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P

PDU1910N-15-120P1-1510NSP

Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

Non-Surge Protection Power

Non-Surge protection power strips are ideal for facilities already equipped with surge protection.

PDU2408N-15-120P1-1510NNS

Non-Surge 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU4814N-15-120P1-1510NNS

Non-Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered,10 ft. power cord with 5-15P

PDU6620N-15-120P1-NB10NNS

Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, 10 ft. power cord with 5-15P

PDU6620N-20-120P1-NB10NNS

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R,10 ft. power cord with 5-20P

PDU6620N-20-120P1-NB10TNS

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, 10 ft. power cord with L5-20P

PDU1910N-15-120P1-1510NNS

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU1910N-15-120P1-1515NNS

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P

PDU1910N-20-120P1-2010NNS

Non-Surge, 20A, 120V, 19″ Horizontal, (10) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P

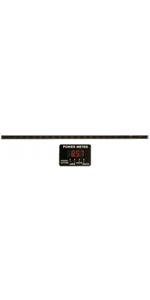

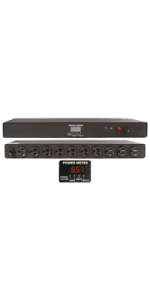

Metered Non-Surge Protection Power

Metered non-surge protection power strips are ideal for facilities already equipped with surge protection.

PDU6620N-15-120P1-1510NNSM

Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU6620N-20-120P1-2010NNSM

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU6620N-20-120P1-2010TNSM

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch,10 ft. power cord with L5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU1910N-15-120P1-1510NNSM

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

Other Accessories:

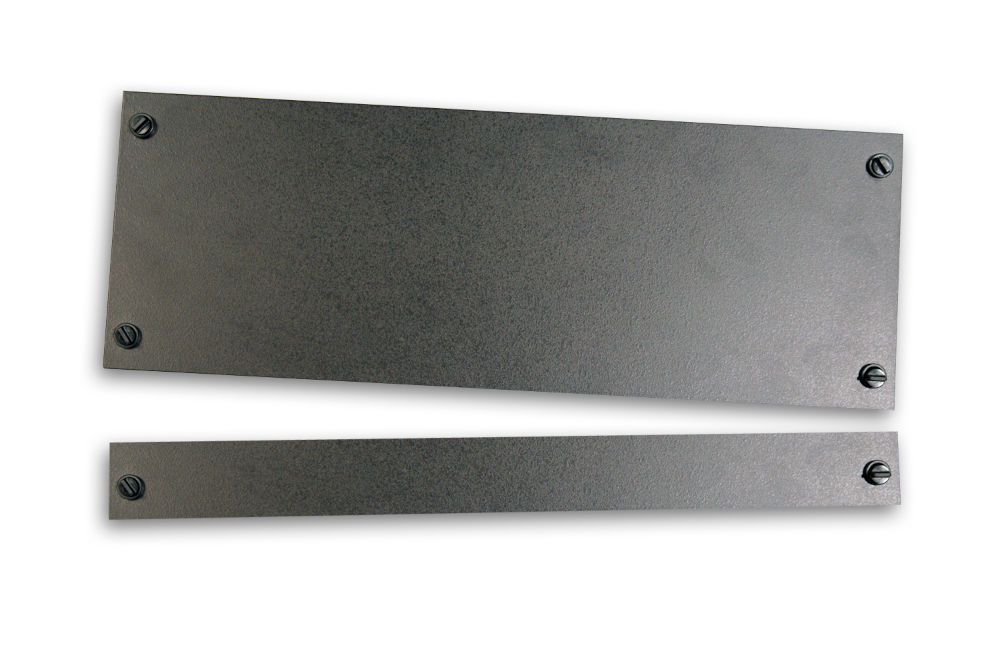

Blanking Panels

Blanking panels are available in solid or vented styles. Use them to fill in empty RU spaces in your rack or to help manage the air flow. Blanking panels are available in 1RU, 2RU, 3RU, 4RU and 8RU panel heights and feature a durable powder coat finish. Formed blanking panels are aluminum and also available individually or in kits.

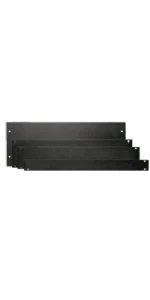

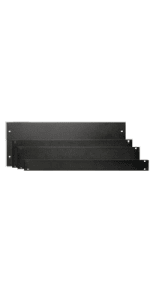

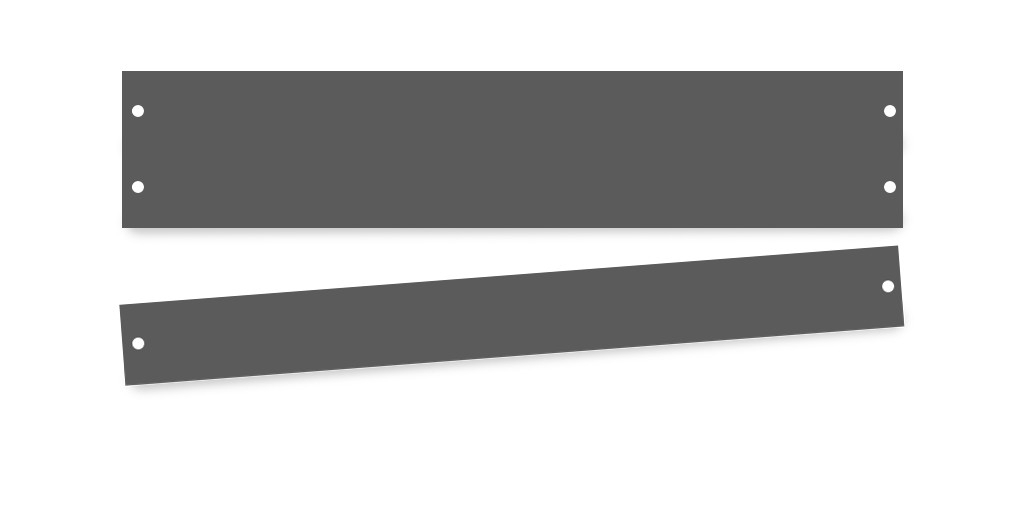

Solid Blanking Panels

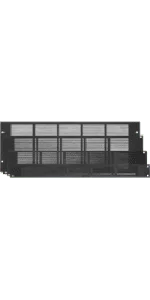

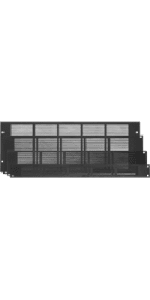

Vented Blanking Panels

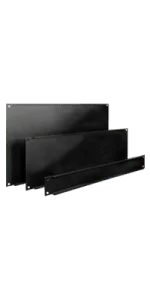

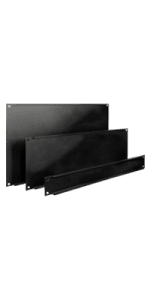

Formed Blanking Panels

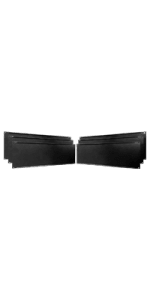

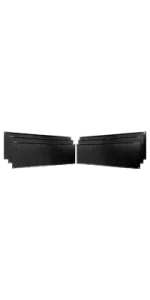

Formed Blanking Panel Kits

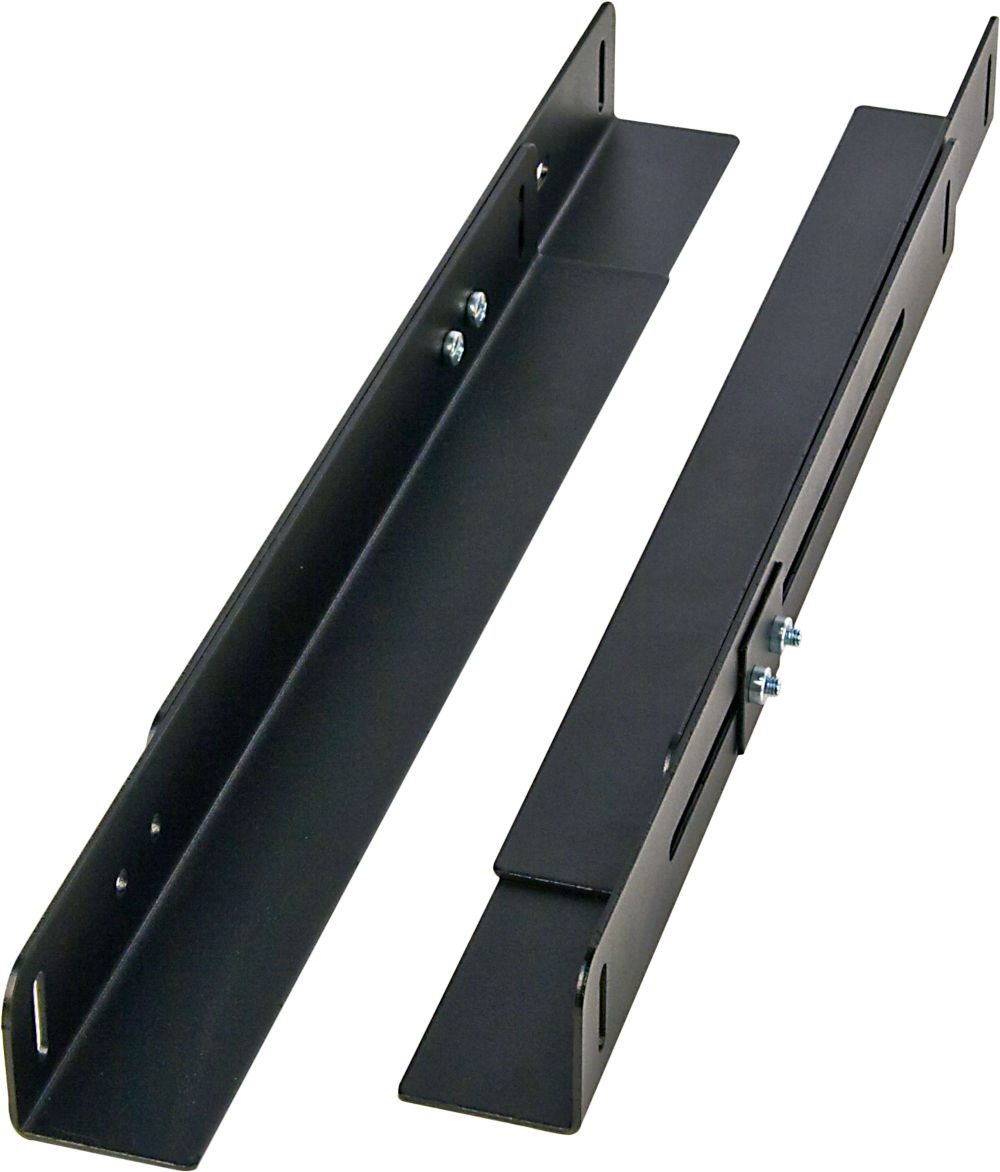

Adjustable Chassis Guides

Chassis guides have a 2″ H x 2″ W profile and are fully adjustable front-to-rear, for rack depths 25″ through 36″. The flanges support component-mounted hardware in a minimal profile. Chassis guides support up to 125 lbs. and feature a black, durable powder coat finish. Chassis guides are for rack depths 25″ through 36″.

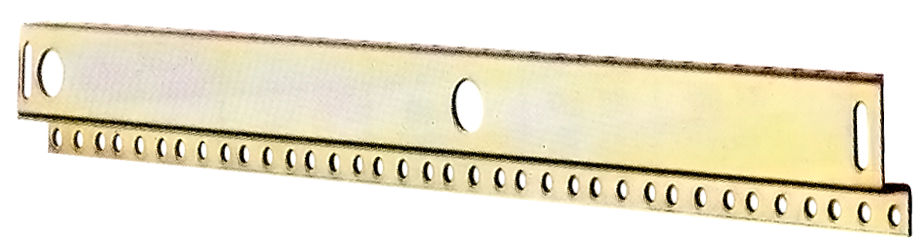

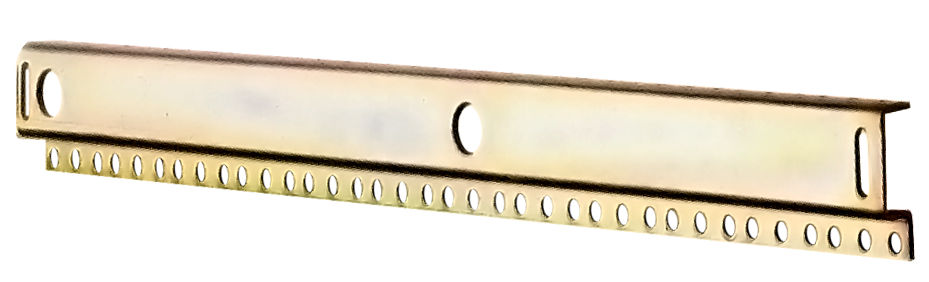

25″-26″ DepthsFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Casters

Casters provide mobility to your security rack design. They are available in two specific load ratings. Fine floor casters feature rubber wheels and have a load rating of 125 lbs. each, while heavy-duty casters have a load rating of 660 lbs. each. Both include four wood shims and mounting hardware.

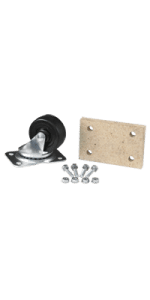

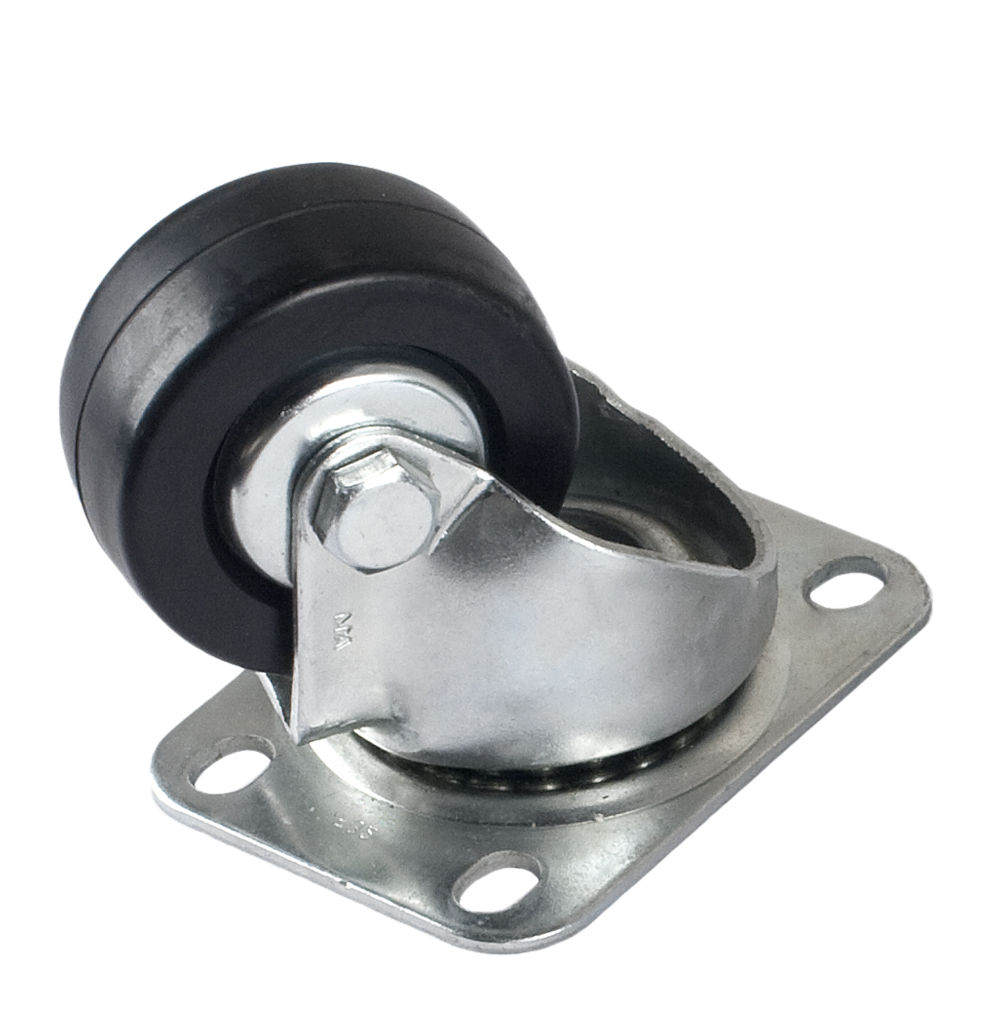

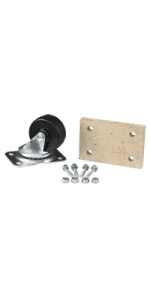

Fine Floor Caster

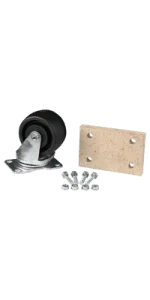

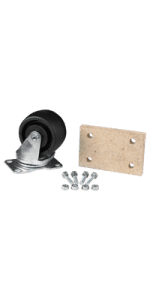

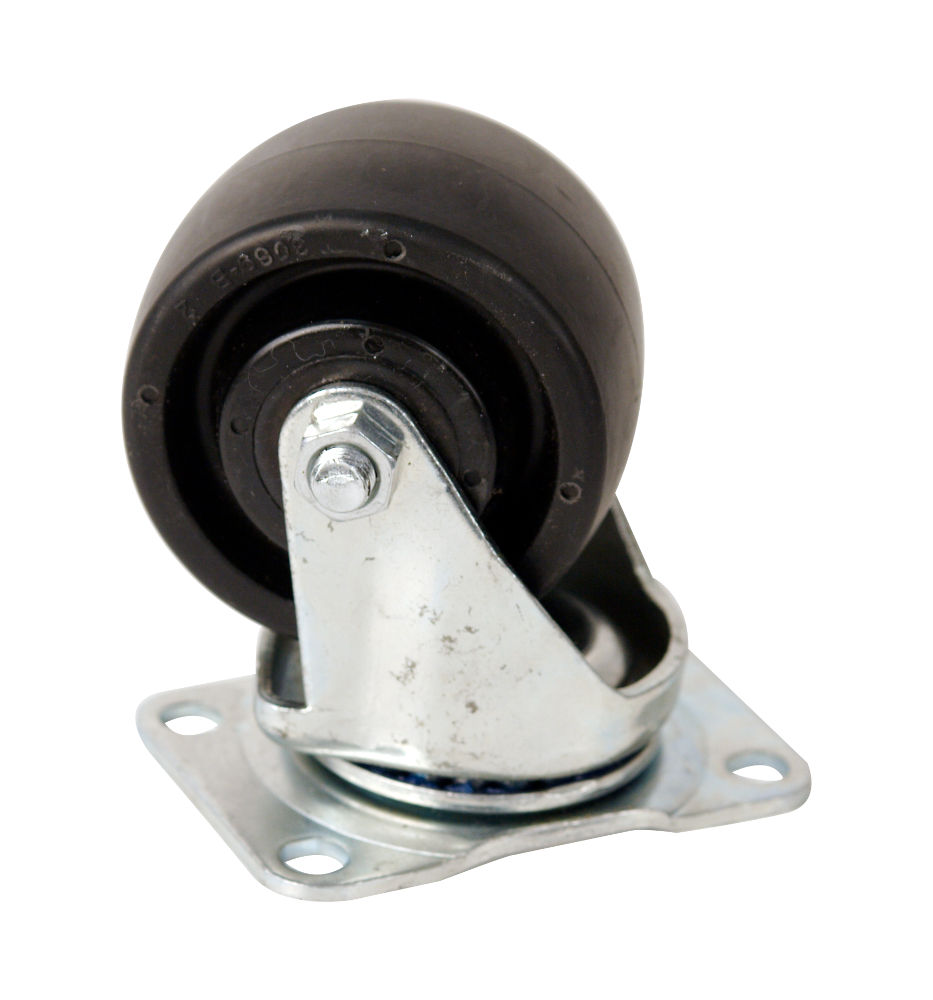

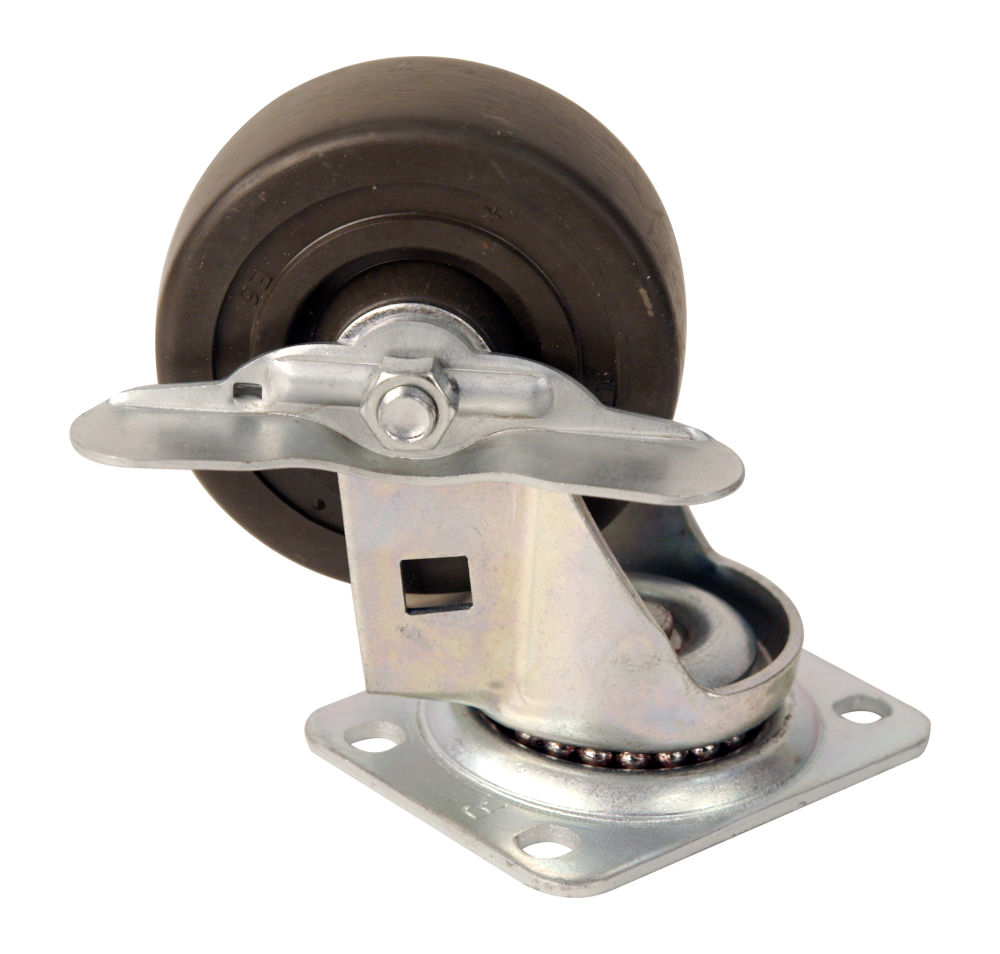

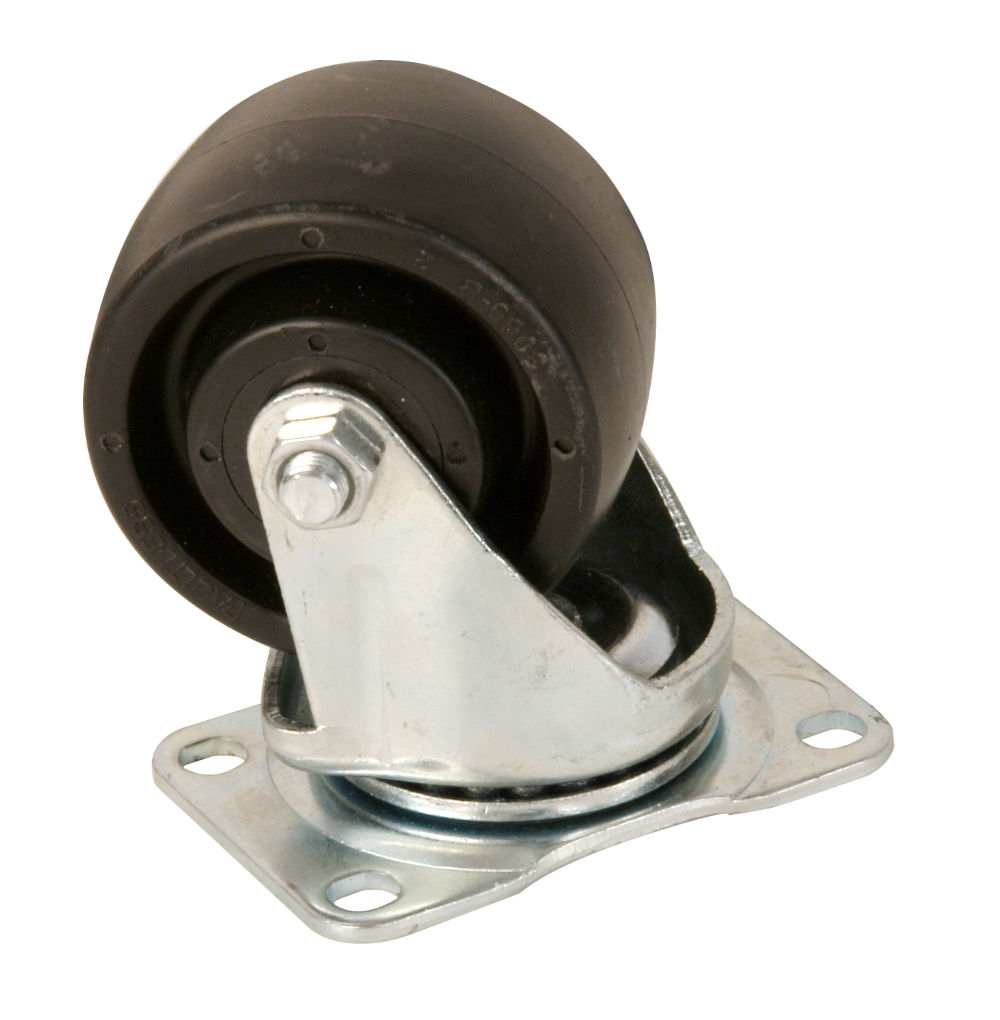

Heavy Duty Caster

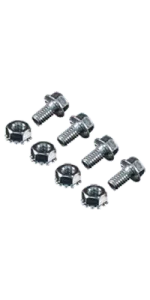

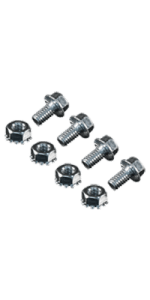

Joining Kit

AMCO has simple solutions for multiple rack configurations. Join racks together using basic #1/4-20 hex and lock nut hardware.

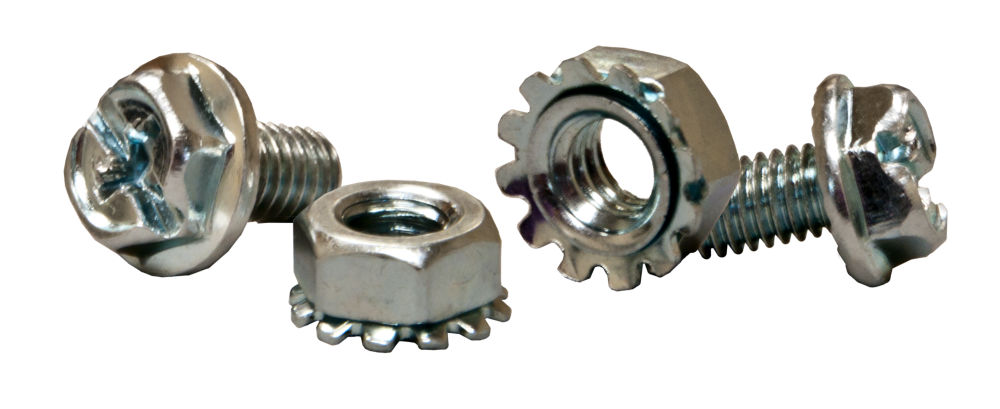

Hardware Kits

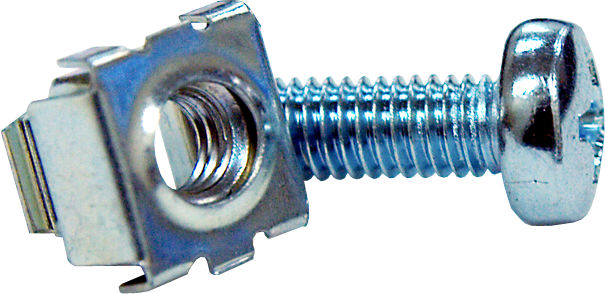

Each rack ships with 50 ea. Dzus M6 inserts and screws to make mounting hardware/components easy to install. Additional mounting hardware is available for equipment mounting.

Note: 50 piece kits available for HKDZ-25 and HK-1032-25. Replace 25 with 50 in part number. (i.e., HK-1032-25 becomes HK-1032-50)

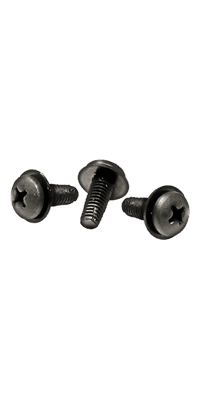

T441 https://www.amcoenclosures.com/wp-content/uploads/2016/09/t441.png 25 pieces, #10-32 x 1/2 black phillips pan head with washer
HK-1032-25 https://www.amcoenclosures.com/wp-content/uploads/2016/09/hk1032-25.png 25 pieces, H801, #10-32 nut retainer
HK500 https://www.amcoenclosures.com/wp-content/uploads/2016/09/hk500.png 500 pieces, #10-32 x 1/2 black phillips pan head with washer

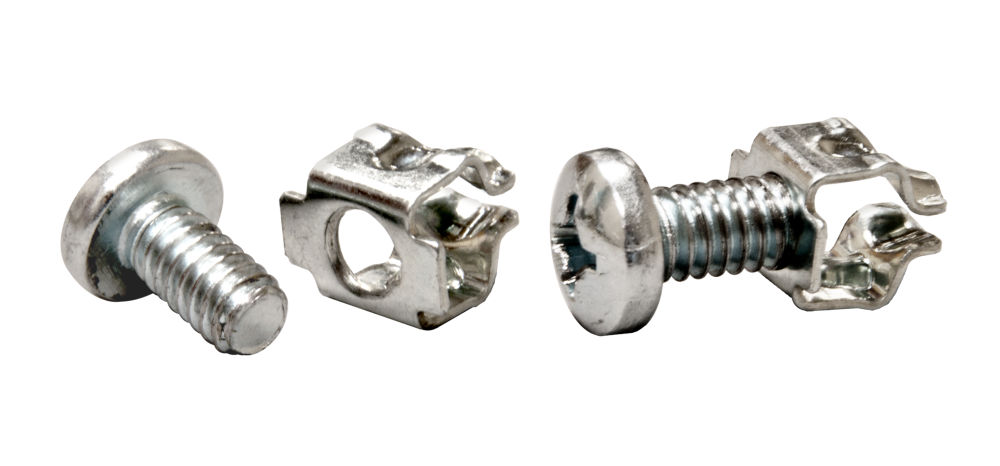

HKDZ-25 https://www.amcoenclosures.com/wp-content/uploads/2016/09/hkdz-25.png 25 pieces, Dzus easy insert hardware kit
