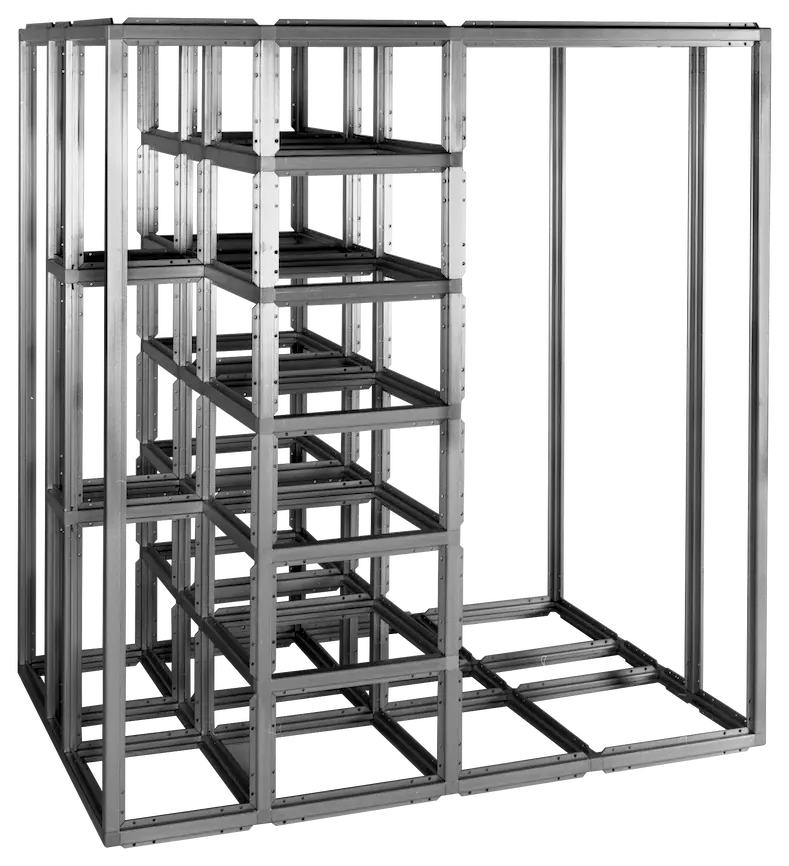

Aluminum Structural Framing System (SFS)
AMCO’s Aluminum Structural Framing System (SFS) is a heavy-duty modular platform designed for building custom frames and enclosures to special size and high-strength requirements. Featuring precision aluminum extrusions and corner castings, the system enables rapid configuration, flexible assembly, and scalable designs while meeting demanding performance standards for industrial and electronic applications.
- Provides a simple, modular method for building high‑strength frames and enclosures in custom sizes.
- Built for industrial equipment frames, electronics enclosures, prototypes, test fixtures, and applications requiring field customization and strong structural assemblies.
- 14 aluminum extrusions, 8 corner castings available.
features
- Max Usage Height/Length: 10’
- High Strength, Heavy Duty Extruded 6061-T6 Aluminum Structural Framing Profiles
- Cut to length and 45° mitered edges upon request
- Limitless structural configuration with 8 available casted aluminum corners and joint system
- 14 different extrusions available, all 1.5” OD width
- Flanges on extrusions accommodate side panels, top panels and doors
- Can ship cut to size, in bulk or as a full assembly
- 8 types of corner castings available
- Assemblies can meet MIL-STD-167-1 shock and vibration requirements
- Designed and manufactured in the USA
- Industry leading – 10-year warranty
Options
- Machining Services: Milling, boring, Tapping, Countersinking
- Parts can be painted, plated or anodized
Certification
- QQ-A-200/8C extrusion specification
- 356-T6/QQ-A-596E casting specification
- MIL-STD-167-1 shock and vibration (when reinforced with bolt on gussets)
- RoHS Compliant
- ISO 9001
Contact AMCO Sales
Email your
Aluminum Structural Framing System (SFS)
requirements to [email protected] or call 847-391-8100 to speak with the sales team.
