Shielded Military

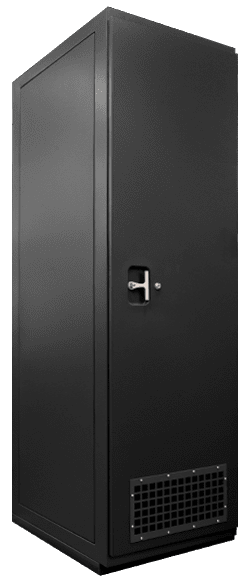

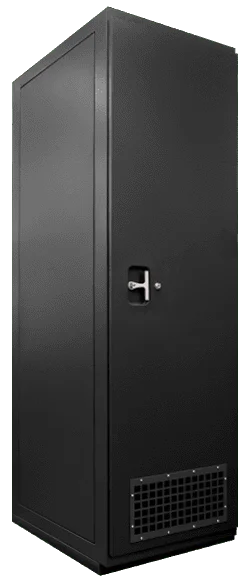

AMCO Enclosures offers a complete line of MIL-STD 285/IEEE-299-2006 fully welded, military grade FRF shielded enclosures. These shielded enclosures feature an EMI gasket material that compresses against a plated surface area, creating the appropriate shielding seal to control radiated emissions. Shielded enclosures are available in RU heights of 12, 26, 30, 35, 40 and 45, 19″ and 24″ panel opening widths and depths of 25.5″, 30″ and 36″.
All shielded military enclosures have a 10-year warranty.
Certified Load Rating:
Static: 3,500 lbs.
Specifications:
- IEEE-299-2006 (previously MIL STD 285) Standard for Electromagnetic Shielding
- MIL STD810E Vibration
- EIA 310D Equipment Mount Specification
- QQ-P-416F Cadmium Plated (Class 3, Type 2, Yellow)
Features:
- Three-point latch doors provide maximum shielding compression
- Choice of punched or #10-32 tapped mounting channels
- Gasket is field replaceable
- Standalone or multi-bay (in-line configurations)
- Available in 11 standard colors
- Custom branding available
Contact AMCO for MIL STD 285/IEEE299-2006 Test Results
- Static: 3,500 lbs.
- Durable powder coat finish
- 10-Year Warranty
- Designed and manufactured in the USA
Design your rack on our Configurator for a quote, 3-D model, and techincal specifications.

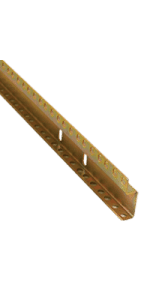

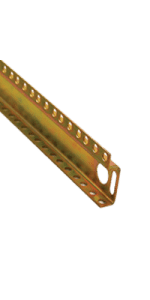

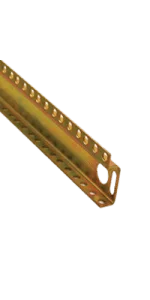

Mounting Channels:
Mounting Channels

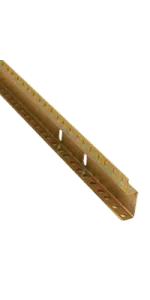

Mounting channels mount to the frame’s side struts and are adjustable front-to-rear for full-depth adjustment of rack mount equipment. All mounting channels feature a yellow chromate finish and include mounting hardware.
Panels:

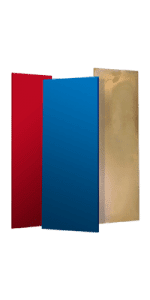

Side Panels
AMCO shielded side panels are solid and available in six heights and three depths. They have a .531″ formed flange design that bolts flush to the side of the enclosure for optimal shielding effectiveness. The exterior of the side panels is available in 11 standard durable powder coat color finishes and the interior features a yellow cadmium-plated finish.
Top Panels

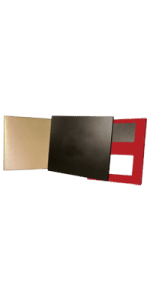

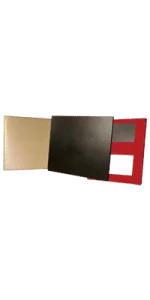

Shielded formed top panels are available in two widths and three depths. The exterior of the top panels is available in 11 standard durable powder coat color finishes and the interior of the panels features a yellow cadmium-plated finish.
Note: Perforated and solid cover plates are available, as well as honeycomb filters (HCRF8) and protective grillee for honeycomb (GCRF8-1).
Top/Bottom Panels

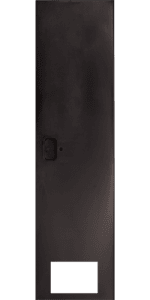

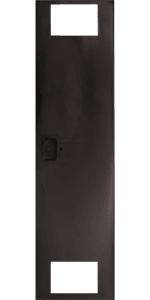

AMCO shielded top/bottom panels are available in two widths and three depths, in a solid plate that bolts to the enclosure for optimal shielding effectiveness. The exterior of top/bottom panels is available 11 standard durable powder coat color finishes and the interior of the panels features a yellow cadmium-plated finish.
Note: Perforated and solid cover plates are available, as well as honeycomb filters (HCRF8) and protective grillee for honeycomb (GCRF8-1).
Doors:

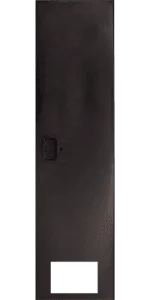

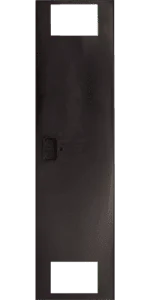

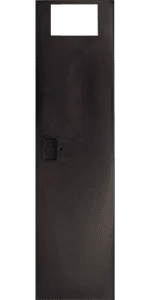

Doors

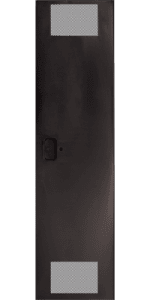

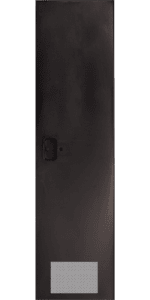

Shielded doors are face mount, .875″ deep and available in six heights, two widths and feature three-point compression latching for proper shielding. They also include an aluminum “T” handle and lock. The exterior of the doors is available in our 11 standard durable powder coat color finishes and the interior of door features a yellow cadmium-plated finish.

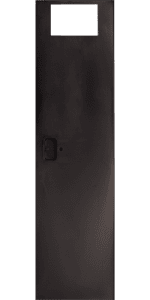

Note: Open doors have assembly options of honeycomb filter (HCRF8) or grillee (GCRF8-1).
Shelves and Drawers:
Shelves

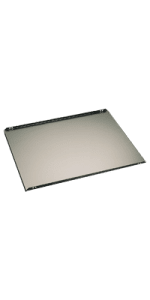

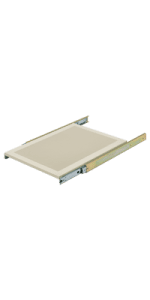

Stationary shelves are available in 19” and 24” models as solid, perforated and heavy duty solid. Retractable shelves are available as solid or perforated. Shelves do not interfere with flush mount doors. Retractable shelves provide full extension with lock-out/disconnect features. All shelves are available in your choice of 11 standard durable powder coat color finishes.
Drawers

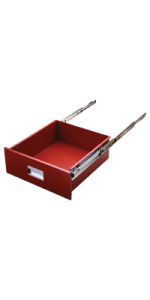

The AMCO standard drawer is available in 2RU, 4RU and 6RU heights, 19″ and 24″ widths, and in depths of 22″, 25.5″, 30″ and 36″. Drawers have a .625″ formed face which includes an aluminum handle and a keyed lock. Drawers add a finished look to the rack as they mount flush to the face of the frame. They have a 150 lb. load rating and are available in your choice of 11 standard durable powder coat color finishes.

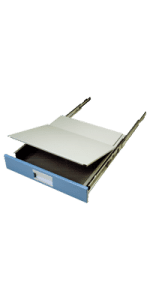

This drawer includes a white laminate writing surface and comes with a lock-out mechanism for full extension. The pull out writing surface drawer has a 1RU height, 19″ and 24″ widths and in depths of 22″, 25.5″, 30″ and 36″. It includes an aluminum handle and a keyed lock. The writing surface drawer is available in your choice of 11 standard durable powder coat color finishes.
Power:
Basic Power
IC-Junior Economical power distribution with 6 outlets and 15-amp capacity. Base level spike and notice suppression.
IC-8 Series is basic power distribution for rack mounted equipment. Base level spike and noise suppression.
IC-8LM has two dimmable rack lights that slide into the chassis when not in use, plus a 20 segment color coded voltage meter which indicates low, acceptable or high levels of AC mains voltage.
Our one 12-outlet 115V/15-amp power strip for vertical mount or one 6-outlet 115V/15-amp for horizontal mount is available. All power strips include a 10 ft. cord. Other power strips are available. Contact your local sales representative for more information.
Enhanced Power
IC-11-15A has 11 outlets total. One not switched and 9 switched on the back, and 1 not switched on the front. There is a circuit breaker on the front of the chassis and there is a base level spike and noise suppression. This includes a power cord with a NEMA5-20P plug on IC-11-20A.
Web Based Power
The AMCO Enclosures IC-IP-1520 is a micro-controller based power distribution device that can be accessed via internet or intranet communications using Ethernet or RS232 connection. With this remote access, individual AC receptacles can be turned on and off and monitored for electrical current flow.
- The IC-IP-1520 has a twenty amp capacity and provides AC line conditioning and surge protection.
- The IC-IP-1520 provides economical web or intranet based remote power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually from anywhere in the world. In addition, current draw can be monitored from 0.2 to 20.0 amps per power POD.
- The IC-IP-1520 can be controlled by the on board web server graphic interface that can be accessed by any web browser. It can also be remote controlled by RS232 connection to commercial or proprietary control systems.
Sequenced Power
- ICR-1500 3 Sequence 15-amp power best suited for single rack systems. Provides timed sequence up and sequence down. Can be remote controlled with latching contact.
- IC-1520 3 Sequence 20-amp AC power with self-contained control circuit. Works alone or plug and play with other IC units. Local or remote activation with contact closure or IC5.
- IC-2200 20-amp 2 sequence device for hard wired installation. Good for small systems requiring only 2 sequences. Also good for staging amplifiers on single circuit.
- IC-PD1-4 Contains 4 sequenced 20-amp circuits which can be wired directly to a breaker panel. Plug and play with other AMCO devices.
Sequenced Power Accessories
The Sequenced Power Accessories are remote control and monitor our products. They feature key switch security and their LEDs report sequence operation and status. They are rack mounted and require no additional power supply.
IC5-RM-RS has a rotary knob for convenience when security is not an issue.
IC-DM-3 is an enhanced remote control combiner. Plug and play installation for remote control from 3 locations. This also provides connection to external alarm systems for easy, orderly sequence down in the event of an emergency situation.
Surge Protection Power
Surge protection power strips are ideal for smaller environments that don’t have protective surge suppression at the facility level, or just when additional protection is needed. Parallel circuitry keeps our Surge protection power strips working even if a surge or spike disables surge suppression.
Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P
Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P
Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered, 10 ft. power cord with 5-15P
Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P
Surge, 20A, 120V, Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P
Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P
Non-Surge Protection Power
Non-Surge protection power strips are ideal for facilities already equipped with surge protection.
Non-Surge 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P
Non-Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered,10 ft. power cord with 5-15P
Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, 10 ft. power cord with 5-15P
Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R,10 ft. power cord with 5-20P
Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, 10 ft. power cord with L5-20P
Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P
Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P
Non-Surge, 20A, 120V, 19″ Horizontal, (10) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P
Metered Non-Surge Protection Power
Metered non-surge protection power strips are ideal for facilities already equipped with surge protection.
Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring
Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring
Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch,10 ft. power cord with L5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring
Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring
Other Accessories:

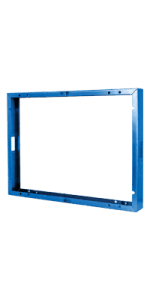

Pedestal Base
Pedestal bases are independent of shielded enclosures and must be ordered separately when desired. When adding casters for mobility, this base is available with or without caster mounting brackets. The bases are 3″ high and bolt to bottom of the shielded enclosure. Pedestal bases also provide 2″ of toe space in the front or rear of the cabinet and an ideal area for electrical boxes. They are available in two widths, three depths and are available in 11 standard durable powder coat color finishes.
Frame Connector

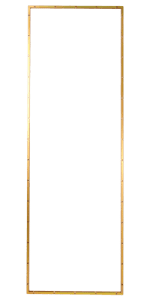

The shielded frame connector features a one-piece design and is used between two enclosures when joining multiple bays together in a series. It has a cadmium-plated finish for shielding integrity and is available in the same six heights and three depths as the corresponding enclosures.

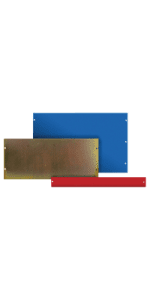

Enclosure Panels

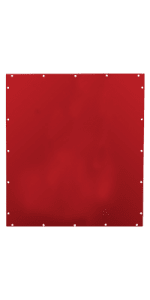

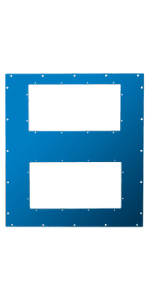

Flat plate steel enclosure panels are available in a variety of RU heights for 19″ and 24″ panel opening widths. In order to maintain shielding seal, a panel spacer must be used between adjoining panels to maintain shielding attenuation. Steel panels are plated on the interior and the exterior is available 11 standard durable powder coat color finishes.
Bus Bar

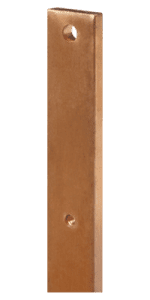

Vertical busbars are used to ground your valuable equipment within the rack. Busbars are copper, with a ½” W x 2″ D profile. They feature #10-32 tapped holes and are available for all standard frame heights.
Cable Entry Housing

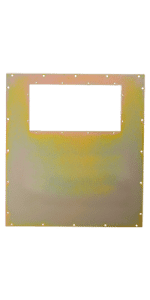

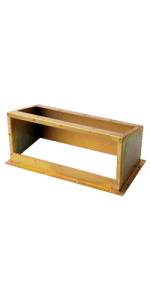

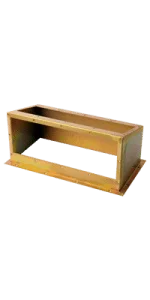

Cable entry housing mounts on the plated surface of a one third open top-and-bottom panel. This design provides either vertical or 90º entry of cables. It includes one cover plate.

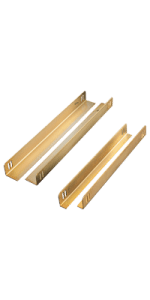

Chassis Guides
Chassis guides have a 2″ H x 2″ W profile. The flanges support component-mounted hardware in a minimal profile. Chassis guides support 125 lbs.
Casters

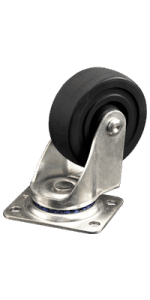

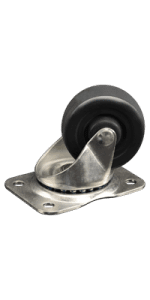

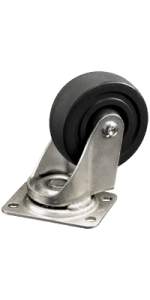

Casters are sometimes required to move racks into place. All casters include assembly hardware to mount the casters to the rack.
Swivel 2 ½” Dia. 175lb load rating *(adds 1.62″)
Rigid 3 ½” Dia. 275lb load rating *(4.37″)
Swivel 3 ½” Dia. 275lb load rating *(4.37″)

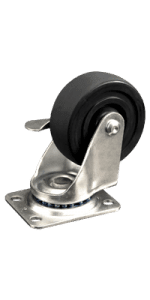

Swivel with foot lock 3 ½” Dia. 275lb load rating *(4.37″)
*Increase to overall enclosure height with 3″ H base
