Seismic ZN4 Data

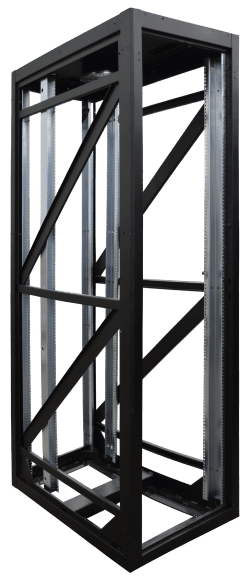

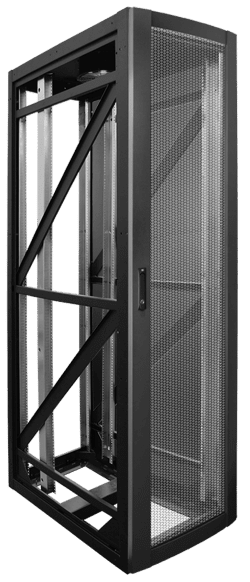

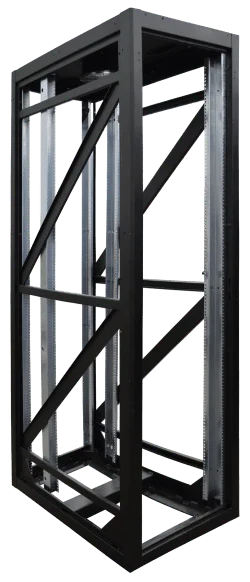

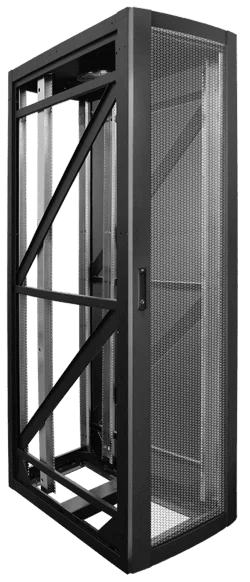

Titan ZN4 data racks have been engineered, tested and certified to GR-63-CORE, providing security for high density server and networking cabinets in IT settings and data rooms that have a high risk of exposure to seismic events and ground vibrations. Available in open or closed configurations, ZN4 racks can be complimented with a full line of accessories to expand your racks capabilities.

Sizes : Heights of 42RU, 44RU and 47RU, Width – 24” and Depths of 36″ and 42”

Certified Seismic Load Rating:

1,200 lbs.

Features:

  • Full line of DATA accessories
  • Enhanced base, additional diagonal struts, gussets and seam welding
  • Top and base are open for cable management options
  • 4 weld studs for Grounding
  • Available in 11 standard colors
  • Custom branding available
  • Custom sizes and accessories are also available
  • Certified Seismic Load Rating: 1,200 lbs.
  • Durable powder coat finish
  • ROHS Compliant
  • ISO9001 Certified
  • 10-Year Warranty
  • Designed and manufactured in the USA

Design your rack on our Configurator for a quote, 3-D model, and techincal specifications.

Configurator
Find Your Sales Representative
Order Support

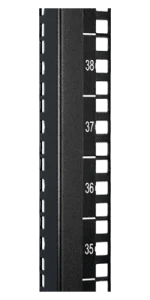

Mounting Channels:

Mounting Channels

Mounting channels are capable of moving completely forward or backward within the rack to provide precise equipment adjustments. Mounting channels feature an M6 square-hole pattern and have individually numbered RUs for each rack unit, resulting in fast and easy equipment installation. All Titan ZN4 mounting channels have a durable black powder coat finish.

MCX Profile Features For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

For standard 19″ mounting on 24″ overall rack widths (24″ width frames require two pairs of MCX mounting channels per frame)

Panels:

Side Panels

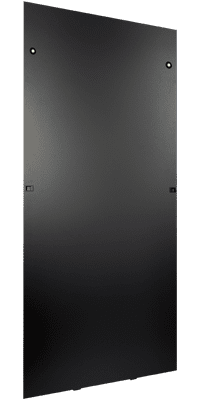

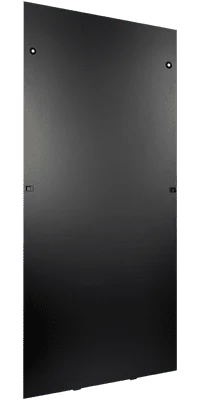

Side panels have been designed for use as baffle panels to contain thermal loads within a rack, or as side panels to close off an existing side of a rack. Side panels mount within the side perimeters of the rack for a flush design aesthetic.

Sizes: Heights of 42RU, 44RU and 47RU and Depths of 36″ and 42”

Side Panel Features

  • Keyed lock keeps panels secure
  • Latches provide easy on/off mechanism
  • Can be mounted in place between multiple-bay consoles
  • Available in Bolt Down for secured designs
https://www.amcoenclosures.com/wp-content/uploads/2016/09/zn4-side-panel.png

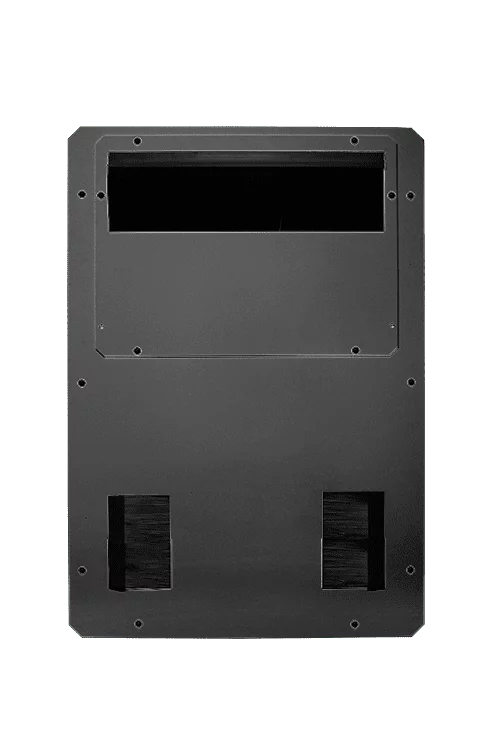

Top Panels

Titan ZN4 DT top panels provide expanded options to address today’s cooling and cabling requirements. Top panels provide an additional level of security as they are bolted directly to the top of the rack. Each panel features multiple cable egress ports, which include dust covers for when not in use (not available on Dual Brush Strip Top Panel)

Solid For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • One-piece solid-plate construction sits within the top of the rack
Vented





  • One-piece construction featuring a vented section of .187″ x .937″ slots

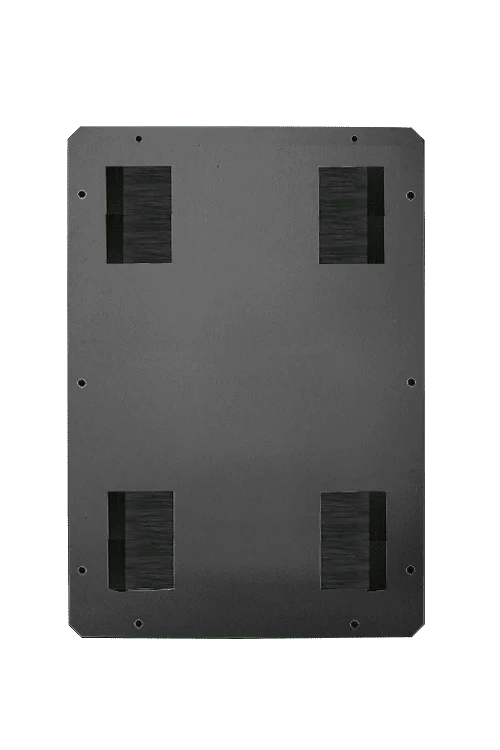

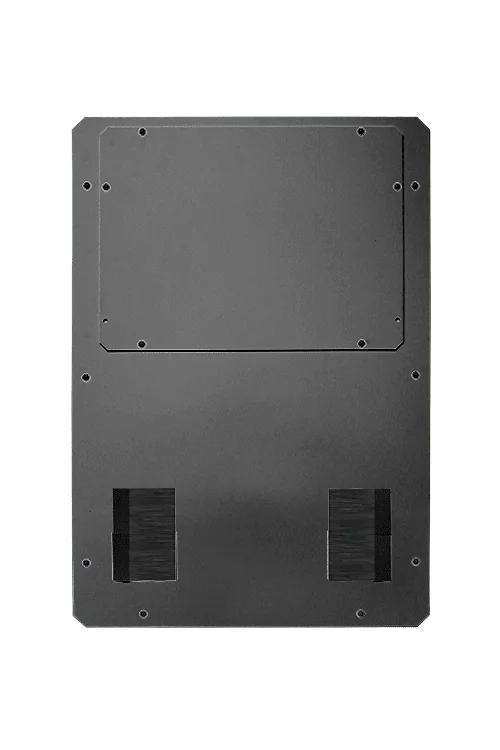

Cover Plate For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Two-piece solid-plate construction with removable 19″ x 10″ solid cover plate
Brush Strip For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Two-piece construction with removable 5″ wide brush strip sections
Dual Brush Strip For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • One-piece construction with dual brush strips

Doors:

Face Doors

Face mount doors mount to the rack’s exterior surface.

Door Features

  • Concealed hinges offer easy on/off release
  • Doors can be mounted as either left-hand or right-hand
  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

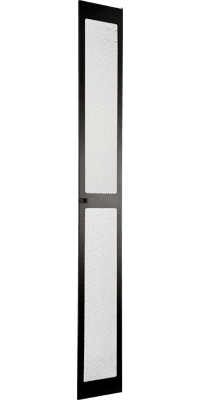

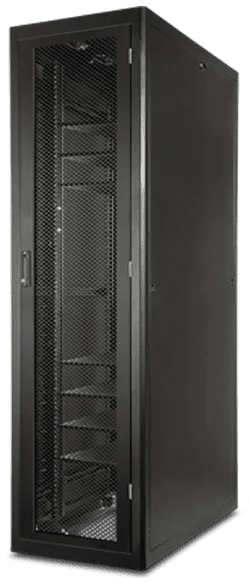

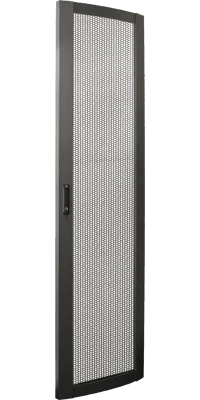

Curved-Face Vented Door For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Flush Doors

Titan ZN4 DT Flush mount doors mount flush to the exterior of the frame. Solid inserts are available to close off vented areas when the Overhead Chimney Solution is used.

Door Features

  • Concealed hinges offer easy on/off release
  • Doors can be mounted as either left-hand or right-hand
  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

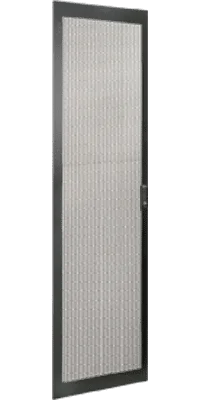

Vented Flush Door For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Vented Flush Door with Solid Insert For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
French Doors

Titan ZN4 DT French mount doors mount flush to the exterior of the frame. French doors are available to decrease swing radius versus full-width doors. This maximizes design efficiency within the data center. Solid inserts are available to close off vented areas when the Overhead Chimney Solution is used.

Door Features

  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

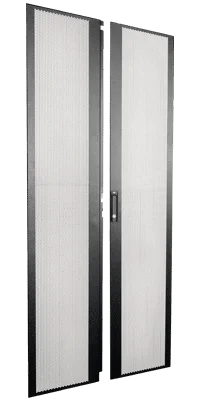

Vented French Door For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

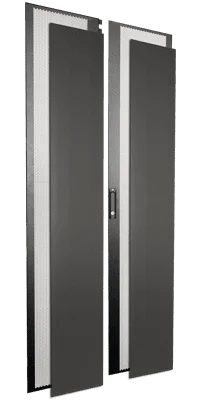

Vented French Door with Solid Insert For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Shelves and Drawers:

Shelves

Heavy duty shelves are 1.75″H (1RU), fit 19″ width panel openings, and have depths of 17″ up to 40″. They are available in solid or vented models and are load-rated to support up to 250 lbs. Shelves mount to the front and rear of the mounting channels.

UA Series shelves are light duty and mount to the front of the mounting channel. The shelves are 19″ wide, 18″ deep, and available in the following heights: 1RU, 2RU, 3RU, 4RU and 5RU.

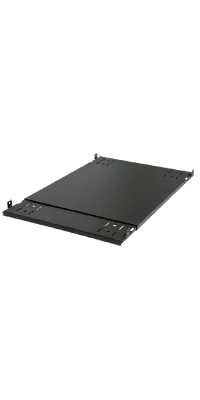

Solid Heavy Duty Shelf For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

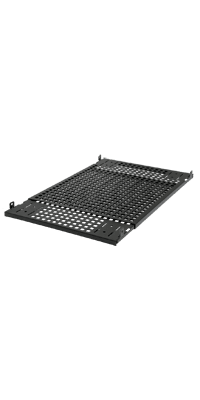

Vented Heavy Duty Shelf For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

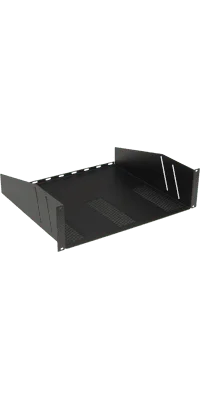

Vented Light Duty Shelf For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Drawers

UA Series drawers are perfect for applications that require a lockable, light-weight storage soution. They are 19″ wide, 18″ deep, feature a keyed lock, and mount to the front of the mounting channels. Drawers are available in heights of 2RU, 3RU, and 4RU.

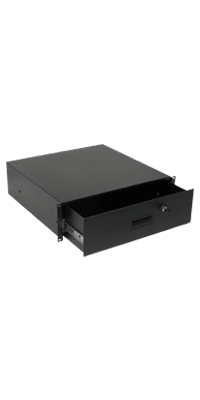

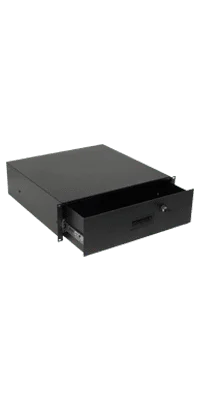

Heavy Duty Drawer For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Cable Management:

Vertical

Available in four rack heights and two widths, power/cable panels mount in the rear of the rack and provide mounting support for PDUs and cable bundles. Power/cable panels have a combination of keyhole pattern slots, M6 square holes and cable egress ports. Cable lacing strips have a combination of M6 holes for cable ring mounting (HK-CR1) or equipment tie-down, while the slots can accept cable ties, fasteners, etc.

Vertical Cable Management Features

  • Tool-less mounting makes PDUs mounting fast and easy
  • Frees up additional RU space in a rack as PDUs are mounted to the panel rather than in the panel opening
  • Properly organized cabling and PDUs at the rear of the rack do not block hot air exhausted from the back of servers. Hot, trapped air increases back pressure and results in higher thermal loads
  • Panels are an efficient cable management solution that neatly organizes your cable bundles

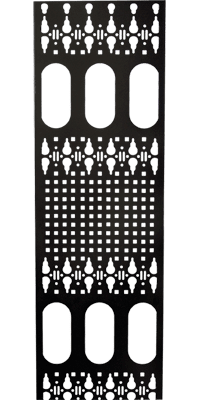

Power/Cable Panel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

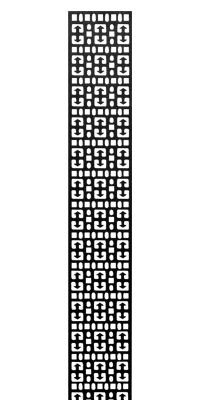

Cable Lacing Strip For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

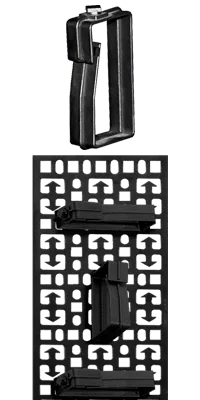

Cable Ring Kit For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





Cable rings easily mount to M6 holes in power/cable panels or cable lacing strips and provide an immediate tie-down point for cabling. Sold in packs of 10.

Horizontal

HCM Panels have a 2RU panel height (3.50”) and feature 10 ga. steel construction. Available in 4” and 7” depths.

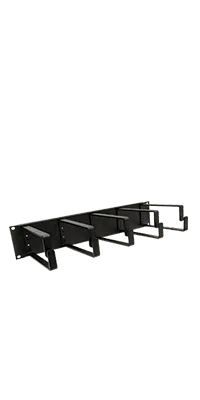

HCM4 – 4” Depth HCM7- 7” Depth For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Cable Raceways

Titan ZN4 DT offers cable raceways for large bundle drops of cabling or power strip mounting between racks. It takes 0RU, organizes cable and power requirements neatly and works against heat buildup that blocks exhausted air at the rear of the rack.

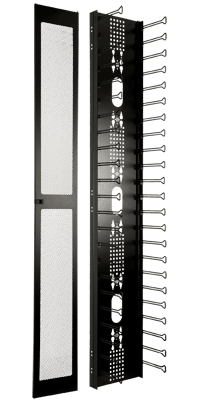

Cable Raceway Kit For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Create your choice of 6 or 8  width openings between racks for cable management
  • Includes choice of solid or vented front door, back panel and choice of 1RU or 2RU fingers that are 9.25 deep

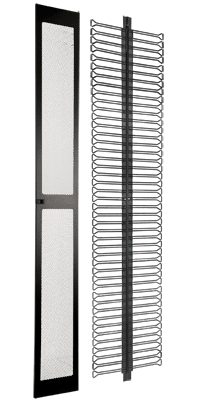

Cable Raceway Kit Without Back Panel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Same sizing options and components as above, except back panel is not included
  • Includes choice of solid or vented front door and choice of 1RU or 2RU fingers that are 9.25 deep
Cable Raceway Doors For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Same sizing as above cable raceway kits
  • Available in solid or vented, providing easy access to cabling between two racks

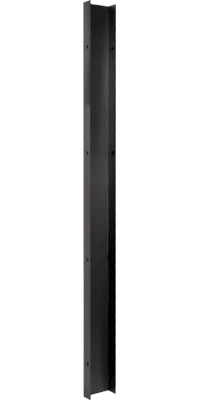

Spacer Panel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Sized as all components above
  • Creates space between racks that requires no access to the cabling

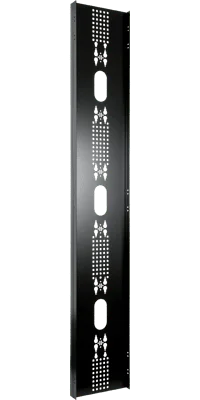

Back Panel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)





  • Sized same as components above
  • Used for cable management or power strip mounting between racks
  • Note: Also offered with 1RU or 2RU fingers

Cooling:

Network Switch Cooling Solution

Network switches typically have a large volume of cabling associated with them. The heat they generate must be redirected from side-to-side and front-to-rear. AMCO has created a passive solution for switch applications.

Note: Network Switch Cooling Solution includes top panel, baffle panel, and vented rear door.

Note: Customer must select front raceway option of equal width to use with Network Switch Cooling Solution (ie. cable raceway door, cable raceway kit, etc.) Also must select a side panel and door.

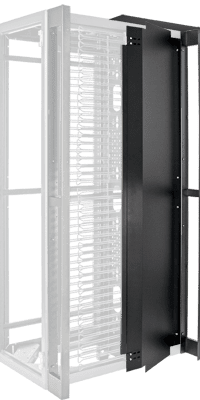

Network Switch Cooling Solution For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Overhead Chimney Solution

Isolating and containing the heat within the rack and directing it back into the overhead CRAC and CRAH systems is an effective passive cooling solution for high-density racks. Chimney solutions prevent hot and cold air mixing in the cabinet, as well as hot air recirculation to the front of the rack. These systems are cost-effective and efficient, reducing the cost of over-cooling your data center. Kit includes top panel, air deflector, and top exhaust duct.

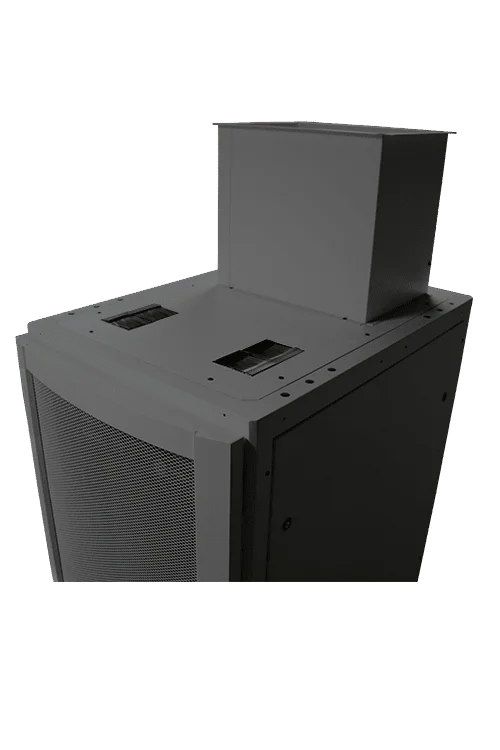

20″-35″ Height For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

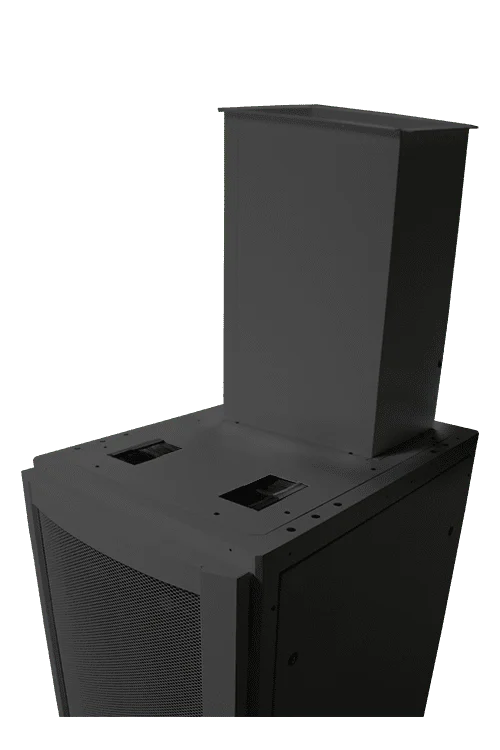

35″-60″ Height For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Other Accessories:

Power

AMCO Enclosures understands the importance of power in today’s rack environment. We offer a select grouping of standard vertical and horizontal 15A and 20A power strips for typical day to day designs. We can also provide metered, monitored, switched PDU’s and environmental units – in expanded 30A -120A models. A variety of cord lengths are available as well as other options.

Features

  • Flexible designs
  • Variety of cord lengths
  • Made in the USA

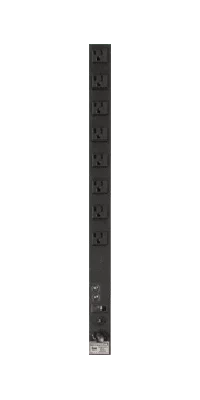

Power Strip For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

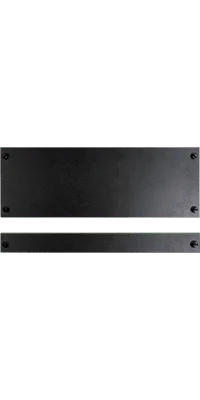

6RU Tool-less Blanking Panel - Plastic

Lower your TCO and increase your racks energy efficiency. Blanking Panels help control airflow in your rack by blocking off open RU spaces. 6RU sheet can be snapped apart and used in 1RU thru 6RU sections.

Blanking Panel Features

  • Very Affordable
  • Tool-less
  • Cover empty spaces in panel openings
  • Optimize air circulation – Cut cooling costs
  • Lightweight plastic per UL94
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Tool-less Blanking Panel - Steel

Lower your TCO while increasing your racks energy efficiency. Help control airflow in your rack by blocking off open RU spaces using blanking panels. AMCO Tool-less steel blanking panels are available in 1, 2, 3, 4 and 8RU.

Blanking Panel Features

  • Tool-less
  • Cover empty spaces in panel openings
  • Optimize air circulation

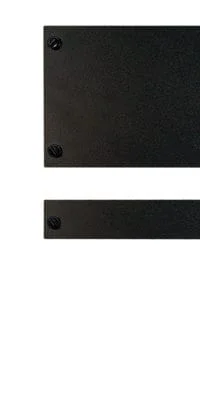

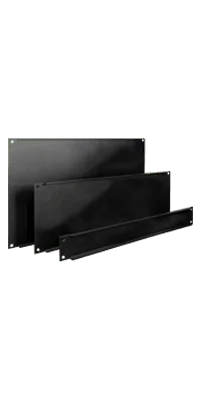

Blanking Panel – Steel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – Steel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – Steel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – Steel For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Also available in Aluminum For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

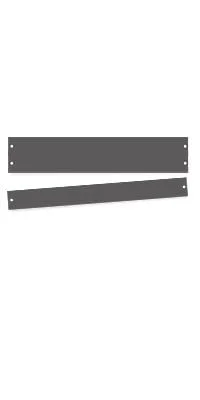

Formed blanking panels are aluminum and also available individually or in kits. *Not available in tool-less.

Adjustable Chassis Guides

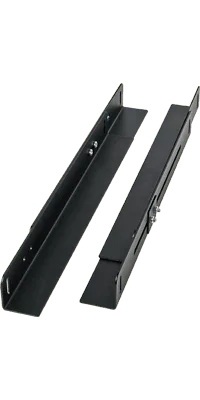

Chassis guides have a 2″ H x 2″ W profile and are fully adjustable front-to-rear, for rack depths 25″ through 36″. The flanges support component-mounted hardware in a minimal profile. Chassis guides support up to 125 lbs. and feature a black, durable powder coat finish. Chassis guides are for rack depths 25″ through 36″.

For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Hardware Kits

Each rack ships with 50 ea. Dzus M6 inserts and screws to make mounting hardware/components easy to install. Additional mounting hardware is available for equipment mounting.

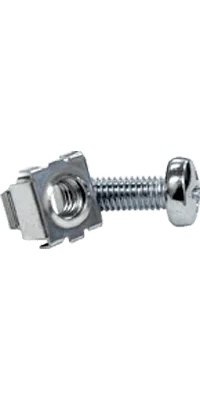

M6 Hardware For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)



HKM6-25 or 50: M6 hardware includes 25 or 50 screws for equipment mounting.

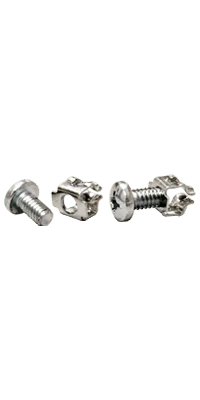

Dzus M6 Hardware For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)HKDZ-25 or 50: M6 Metric Dzus includes 25 or 50 easy inserts and M6 clear chromate screws.
Joining Brackets

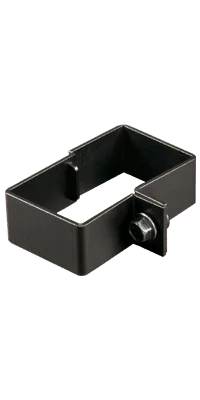

FJB-TN: Frame joining bracket For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)



Frame joining bracket. For joining frames that have equipment already installed. Sold separately.

HK-R-TN: Frame joining kit (8 pieces) For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)Frame joining kit (8 pieces) included with each cabinet.
