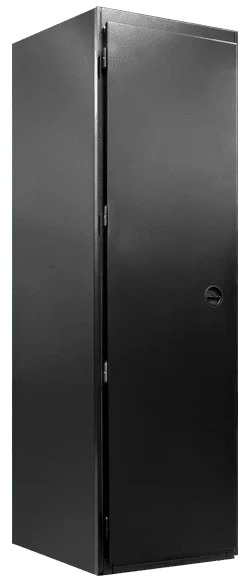

SHIELDED COMMERCIAL-GRADE SERVER ENCLOSURE

AMCO Enclosures offers a full line of MIL-STD 285/IEEE-299-1997 commercial grade shielded enclosures for lower level emissions control. These shielded enclosures feature an EMI gasket material that compresses against a plated surface area to create the appropriate shielding levels to control radiated emissions. Shielded enclosures are available in RU heights of 12, 18, 24, 30, 35, 40 and 45 heights, 19″ and 24″ panel widths, and 25.5″, 30″ and 36″ frame depths.

Certified Load Rating:

Static: 3,500 lbs.

Specifications:

  • IEEE-299-2006 (previously MIL STD 285) Standard for Electromagnetic Shielding
  • MIL STD 810E Vibration
  • EIA 310D Equipment Mount Specification
  • MIL-STD-901D Shock
  • ASTM-B633-98 Zinc Plating Specification Class SC2 Type 2 (Clear)

Features:

  • Three-point latch doors provide maximum shielding compression
  • Choice of punched or #10-32 tapped mounting channels
  • Gasket is field-replaceable
  • Full line of standard accessories
  • Standalone or multi-bay (in-line configurations)
  • Available in 11 standard colors
  • Custom branding available

Contact AMCO for MIL STD 285/IEEE299-2006 Test Results

Contact Us Now to Order
  • Static: 3,500 lbs.
  • Durable powder coat finish
  • RoHS Compliant
  • ISO9001 Certified
  • 10-Year Warranty
  • Designed and manufactured in the USA

Shielded Catalog
Commercial Shielded Cut Sheet
Shielded Commercial Technical Drawing
11 Standard Colors and Custom Branding
Shielded Commercial Test Report

Design your rack on our Configurator for a quote, 3-D model, and techincal specifications.

Configurator
Find Your Sales Representative
Order Support

Mounting Channels:

Mounting Channels
MX and MXL channels provide standard mounting options in 14 ga. CRS channels. The MX channel provides dual mounting flanges for a panel mounting surface and an equipment support or slide mounting surface. Both the MX and MXL can be used with any standard FX series frame heights in 19″ and 24″ panel widths. MX and MXL channels feature a standard EIA punched holes for clip nuts with either a #12-24 or #10-32 thread.

The 11 ga. MXT and MXLT channels are the same as MX and MXL, except they have #10-32 drilled and tapped holes on the panel mounting flanges. MXW channels have been designed for the mounting of 19″ equipment in a 24″ wide seismic frame. MXLA and MXWA adapters are used to provide a mounting flange for chassis or accessories on MXL or MXW mounting channels. Mounting hardware is included. All panel mounting channels are zinc-plated with clear chromate (RoHS Compliant).

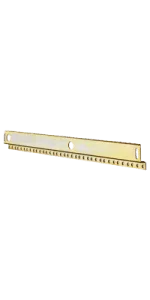

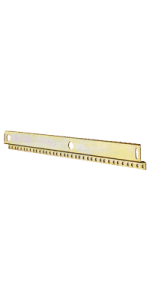

MX Mounting Channel

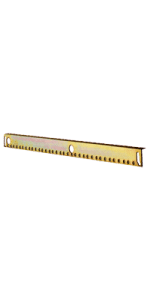

MXL Mounting Channel
MXT Mounting Channel

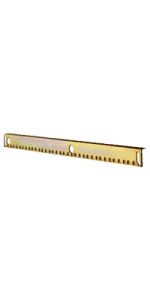

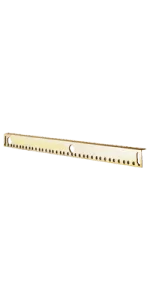

MXLT Mounting Channel

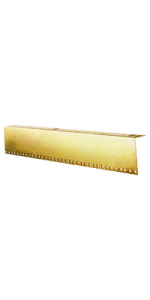

MXW Mounting Channel

Panels:

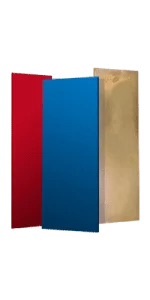

Side Panels
AMCO shielded side panels are solid and available in seven heights and three depths. They have a .531″ formed flange design that bolts to the side of the enclosure for optimal shielding effectiveness. The exterior of the side panel is available in 11 standard colors and the interior of the panel features a yellow or clear (RoHS compliant) plated finish.

Solid
Top Panels

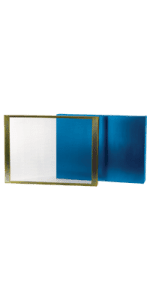

Shielded formed top panels are available in two widths and three depths. The exterior of the top panels is available in 11 standard colors and the interior of the panels features a yellow or clear (RoHS compliant) plated finish.

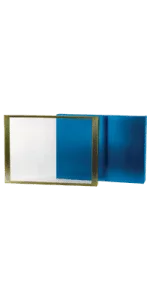

Perforated
Top/Bottom Panels
AMCO shielded top/bottom panels are available in two widths and three depths, in a solid plate that bolts to the enclosure for optimal shielding effectiveness. The exterior of top/bottom panels is available 11 standard durable powder coat color finishes and the interior of the panels features a yellow cadmium-plated finish.

Note: Perforated and solid cover plates are available, as well as honeycomb filters (HCRF8) and protective grillee for honeycomb (GCRF8-1).

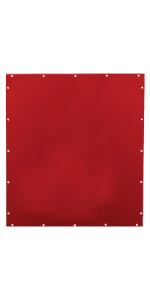

Flat Solid

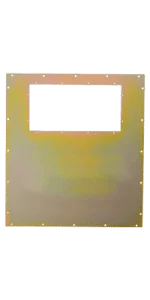

Flat 1/3 Open

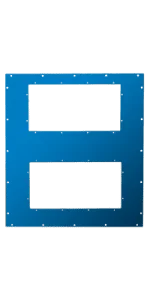

Flat 2/3 Open

Doors:

Doors
Shielded doors are face mount, .875″ deep and available in six heights, two widths and feature Three-point compression latching for proper shielding. They also include an aluminum “T” handle and lock. The exterior of the doors is available in 11 standard colors and the interior of the doors features a yellow or clear (RoHS compliant) plated finish.

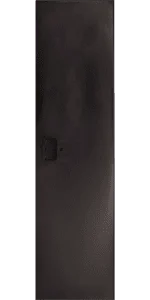

Solid

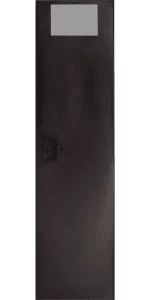

Vented Top

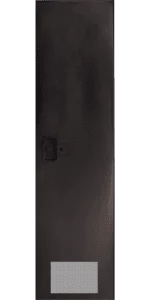

Vented Bottom

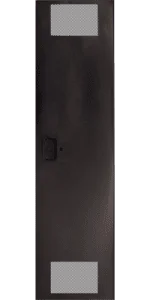

Vented Top and Bottom

Shelves and Drawers:

Shelves
Stationary shelves are available in 19” and 24” models as solid, perforated and heavy-duty solid. Retractable shelves are available as solid or perforated. Shelves do not interfere with flush mount doors. Retractable shelves provide full extension with lock-out/disconnect features. All shelves are available in your choice of 11 standard durable powder coat color finishes.

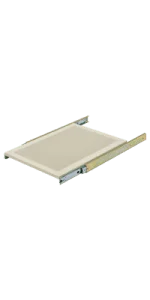

Perforated Retractable Shelf

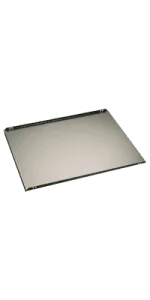

Solid Shelf
Drawers
The AMCO standard drawer is available in 2RU, 4RU and 6RU heights, 19″ and 24″ widths, and in depths of 22″, 25.5″, 30″ and 36″. Drawers have a .625″ formed face which includes an aluminum handle and a keyed lock. Drawers add a finished look to the rack as they mount flush to the face of the frame. They have a 150 lb. load rating and are available in your choice of 11 standard durable powder coat color finishes.

This drawer includes a white laminate writing surface and comes with a lock-out mechanism for full extension. The pull out writing surface drawer has a 1RU height, 19″ and 24″ widths and in depths of 22″, 25.5″, 30″ and 36″. It includes an aluminum handle and a keyed lock. The writing surface drawer is available in your choice of 11 standard durable powder coat color finishes.

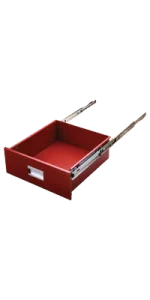

Drawer with Lock

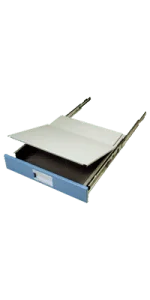

Pull Out Writing Surface Drawer

Power:

Basic Power

12-outlet 115V/15-amp power strip for vertical mount or 6-outlet 115V/15-amp for horizontal mount is available. All power strips include a 10 ft. cord. Other power strips are available. Contact your local sales representative for more information.

Vertical Power Strip 48″Long
Horizontal Power Strip 17″ Long
Surge Protection Power
Surge protection power strips are ideal for smaller environments that don’t have protective surge suppression at the facility level, or just when additional protection is needed. Parallel circuitry keeps our Surge protection power strips working even if a surge or spike disables surge suppression.

PDU2408N-15-120P1-1510NSP

Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU2408N-15-120P1-1515NSP

Surge, 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P

PDU4814N-15-120P1-1510NSP

Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered, 10 ft. power cord with 5-15P

PDU6620N-15-120P1-1510NSP

Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU6620N-20-120P1-2010NSP

Surge, 20A, 120V, Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P

PDU1910N-15-120P1-1510NSP

Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

Non-Surge Protection Power
Non-Surge protection power strips are ideal for facilities already equipped with surge protection.

PDU2408N-15-120P1-1510NNS

Non-Surge 15A, 120V, 24″ Vertical, (8) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU4814N-15-120P1-1510NNS

Non-Surge, 15A, 120V, 48″ Vertical, (14) NEMA 5-15R, power switch, breakered,10 ft. power cord with 5-15P

PDU6620N-15-120P1-NB10NNS

Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, 10 ft. power cord with 5-15P

PDU6620N-20-120P1-NB10NNS

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R,10 ft. power cord with 5-20P

PDU6620N-20-120P1-NB10TNS

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, 10 ft. power cord with L5-20P

PDU1910N-15-120P1-1510NNS

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P

PDU1910N-15-120P1-1515NNS

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, power switch, 15 ft. power cord with 5-15P

PDU1910N-20-120P1-2010NNS

Non-Surge, 20A, 120V, 19″ Horizontal, (10) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P

Metered Non-Surge Protection Power
Metered non-surge protection power strips are ideal for facilities already equipped with surge protection.

PDU6620N-15-120P1-1510NNSM

Non-Surge, 15A, 120V, 66″ Vertical, (20) NEMA 5-15R, power switch, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU6620N-20-120P1-2010NNSM

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch, 10 ft. power cord with 5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU6620N-20-120P1-2010TNSM

Non-Surge, 20A, 120V, 66″ Vertical, (20) NEMA 5-20R, power switch,10 ft. power cord with L5-20P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

PDU1910N-15-120P1-1510NNSM

Non-Surge, 15A, 120V, 19″ Horizontal, (10) NEMA 5-15R, 10 ft. power cord with 5-15P, Power Meter – Amps, Volts, Watts and Power Factor Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input, Aggregate – Total Unit Monitoring

Other Accessories:

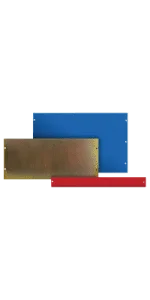

Enclosure Panels
Flat steel enclosure panels are available in a variety of RU heights for 19″ and 24″ panel opening widths. In order to maintain shielding seal, a panel spacer must be used between adjoining panels to maintain attenuation. Enclosure panels are available in 11 standard colors on the exterior and the interior of the panel features a yellow or clear (RoHS compliant) plated finish.

Solid

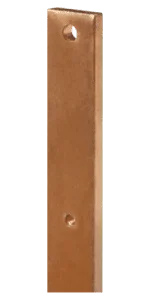

Bus Bar
Vertical busbars are used to ground your valuable equipment within the rack. Busbars are copper, with a ½” W x 2″ D profile. They feature #10-32 tapped holes and are available for all standard frame heights.

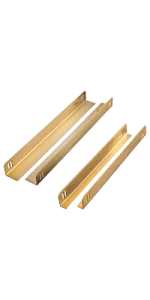

Chassis Guides
Chassis guides have a 2″ H x 2″ W profile. The flanges support component-mounted hardware in a minimal profile. Chassis guides support 125 lbs.

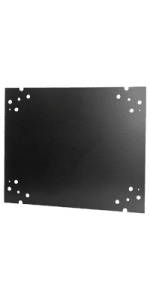

Base Plate
AMCO base plates are available in two widths and three frame depths, in a solid plate that bolts to the enclosure base for optimal shielding effectiveness. The exterior of the base plate is available in 11 standard colors and the interior of the panel features a yellow or clear (RoHS compliant) plated finish.

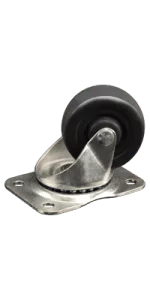

Casters
Casters are sometimes required to move racks into place. All casters include assembly hardware to mount the casters to the rack.

CA1-RF

Swivel 2 ½” Dia. 175lb load rating *(adds 1.62″)

CA2R-RF

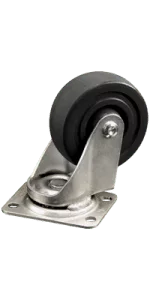

Rigid 3 ½” Dia. 275lb load rating *(4.37″)

CA2S-RF

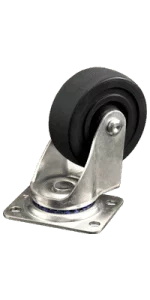

Swivel 3 ½” Dia. 275lb load rating *(4.37″)

CA3-RF

Swivel with foot lock 3 ½” Dia. 275lb load rating *(4.37″)

*Increase to overall enclosure height with 3″ H base
