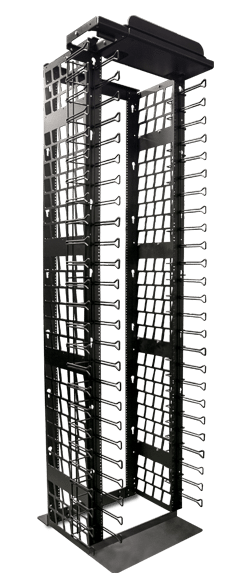

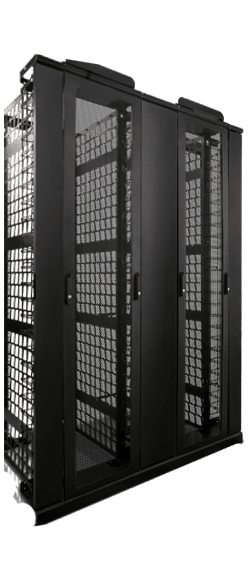

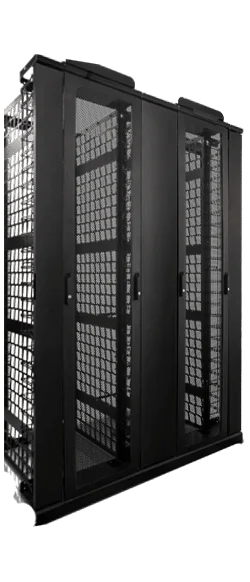

Titan Cable Management

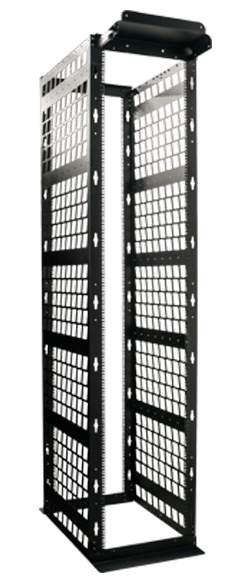

AMCO’s Titan Cable Management rack (TCM) is a high density, open architecture cable management system that establishes pathways for large volume network cabling. It provides complete accessibility for cabling swaps and add-ons, while providing optimal heat dissipation. This allows your network hardware to run cooler and perform as intended.

Certified Load Rating:

2,100 lbs.

Features:

  • Heights: 45U, 51U
  • Mounting Widths: 19”, 23”
  • Depths: 6”, 10”, 16”, 30”
  • Open architecture design promotes optimal airflow
  • TCM racks support large cable bundles with dedicated raceways
  • Large vent pattern in rack sides help heat dissipation
  • Assembles quickly for faster installation and set-up
  • Vented doors with dual handles for LH/RH access to equipment
  • Third rail option available for shallower equipment mounting into deeper racks
  • #12-24 spare hardware for 6″, 10″ and 16” depth racks, M6 spare hardware for the 30” depth
  • Baffle kit option for directing cold intake air to the side of switches where it is exhausted out into the hot aisle
  • Stocked in black and available in other colors upon request
  • Stocked in black but available in 11 standard colors
  • Custom branding available

Doors:

TCM Doors

Titan Cable Management doors have a 77% open vent pattern. Doors feature a dual handle design that allows either RH/LH access to your network equipment. All doors have swing handles with keyed locks.

  • Concealed hinges offer easy on/off release
Titan Cable Management Door For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Cable Management:

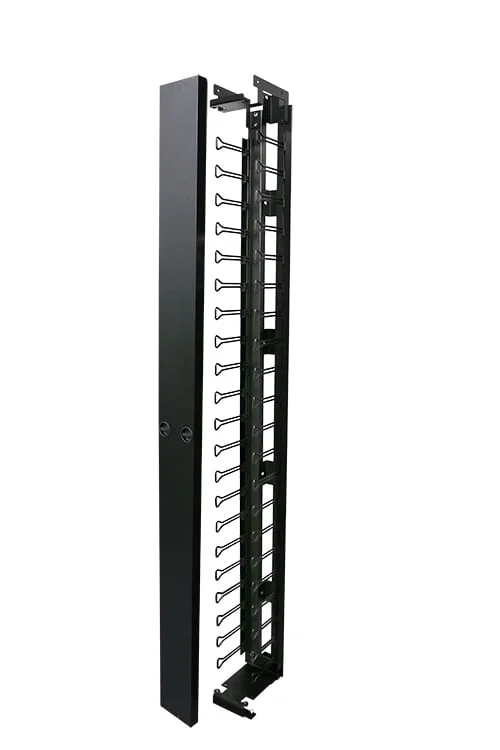

Cable Manager With Door

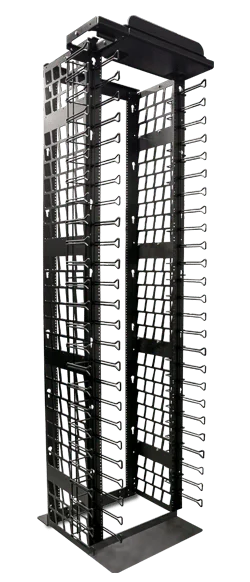

Constructed of .230” diameter steel wire, these vertical cable managers are available in 6”, 10”, 12”, and 16” widths. Solid doors have dual hidden latch mechanisms that provide access to cabling from either side.

  • Wire cable managers have 2RU fingers for larger cable bundles
https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/cable-manager-with-door.png
Ladder Brackets

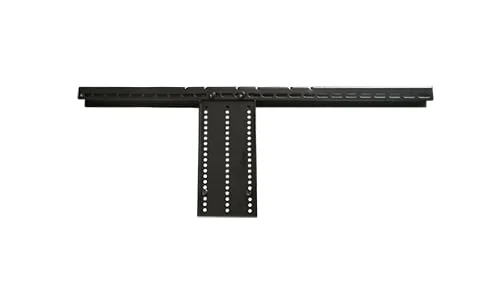

Ladder brackets mount to the top of the TCM rack and support your overhead cable raceways.

  • Adjustable height and width hardware for your wire baskets, ladder rack and other overhead cable management systems
  • Either 6”-12” or 12”-24”
https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/titan-cable-management-ladder-bracket.png
Horizontal Cable Management Panel

HCM Panels have a 2RU panel height (3.50″) and feature 10 ga. steel construction. Available in 4″ and 7″ depths.

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/horizontal-cable-management-panel.png

Cooling:

Baffle Kit

TCM baffle kits direct intake cold air into side of network switches where it is converted into hot exhausted air that exits into hot aisle.

WMR Fan Kit

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/WMR-fan-kit-baffle-kit.png

Other Accessories:

Third Rail

Third rails are available in 51RU and 45RU rack heights and provide additional depth location support for shallower equipment mounting in 30”deep racks.

  • Rails are M6 style
  • Set consists of mounting rails and side struts for front-to-rear equipment adjustments

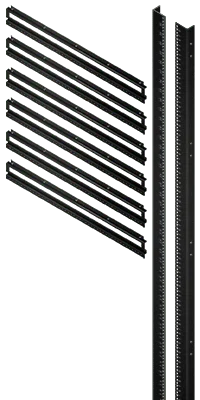

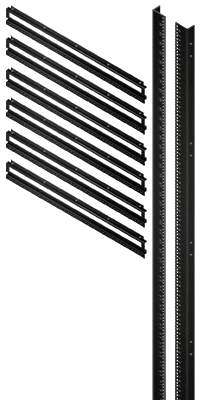

Titan Cable Management Third Rail Kit

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/titan-cable-management-third-rail-kit.png

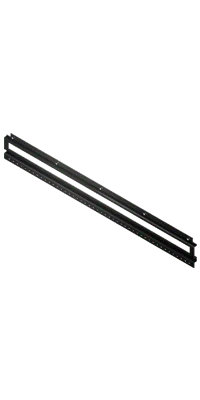

Titan Cable Management Third Rail (isolated)

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/titan-cable-management-third-rail-isolated.png

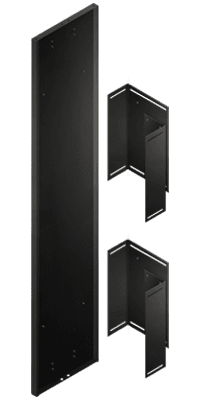

End Cap

TCM end caps provide an additional layer of security between your cable management and outside access

  • Bolt down design prevents outside access

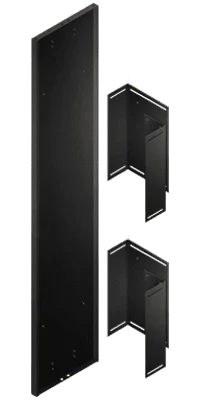

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/titan-cable-management-end-cap.png
Shelves

Heavy duty shelves are 1.75″H (1RU), fit 19″ width panel openings, and have depths of 17″ up to 40″. They are available in solid or vented models and are load-rated to support up to 250 lbs. Shelves mount to the front and rear of the mounting channels.

UA Series shelves are light duty and mount to the front of the mounting channel. The shelves are 19″ wide, 18″ deep, and available in the following heights: 1RU, 2RU, 3RU, 4RU and 5RU.

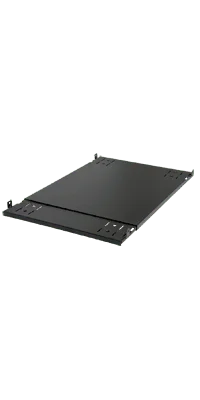

Solid Heavy Duty Shelf

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/solid-heavy-duty-shelf.png

Vented Heavy Duty Shelf

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/vented-heavy-duty-shelf.png

UA Series Light Duty Shelf

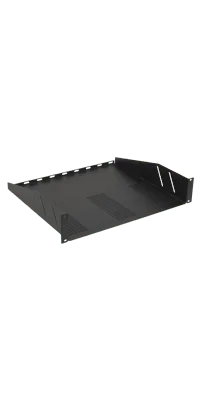

https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/UA-series-light-duty-shelf.png

Blanking Panels

Blanking panels are available in solid or vented styles. Use them to fill in empty RU spaces in your rack or to help manage the air flow. Blanking panels are available in 1, 2, 3, 4 and 8RU panel heights and feature a durable powder coat finish. Formed blanking panels are aluminum and also available individually or in kits.

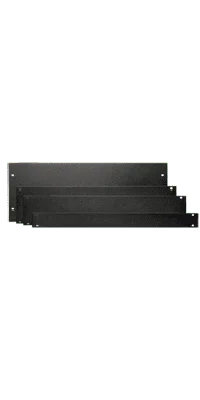

Solid Blanking Panels https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/solid-blanking-panels.png

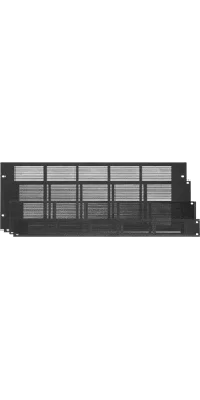

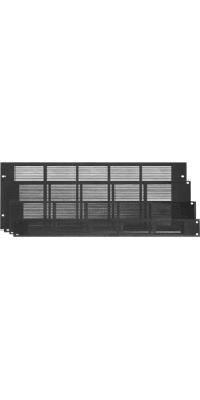

Vented Blanking Panels https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/vented-blanking-panels.png

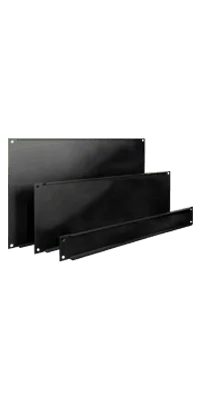

Formed Blanking Panels https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/formed-blanking-panels.png

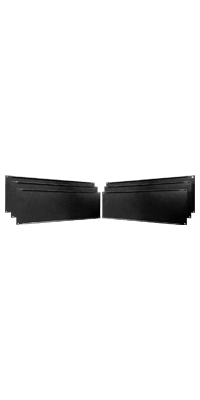

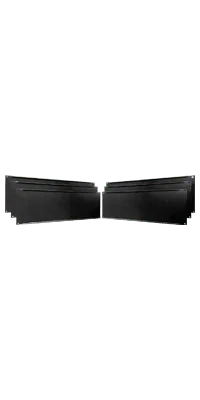

Formed Blanking Panel Kits https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/formed-blanking-panel-kits.png
Hardware Kits

Each rack ships with 50 ea. Dzus M6 inserts and screws to make mounting hardware/components easy to install. Additional mounting hardware is available for equipment mounting.

Note: 50 piece kits available for HKDZ-25 and HK-1032-25. Replace 25 with 50 in part number. (i.e., HK-1032-25 becomes HK-1032-50)

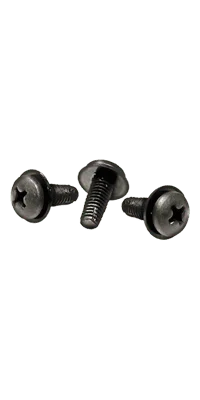

T441 https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/t441.png 25 pieces, #10-32 x 1/2 black phillips pan head with washer

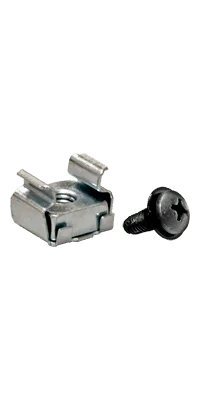

HK-1032-25 https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/hk1032-25.png 25 pieces, H801, #10-32 nut retainer
HK500 https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/hk500.png 500 pieces, #10-32 x 1/2 black phillips pan head with washer

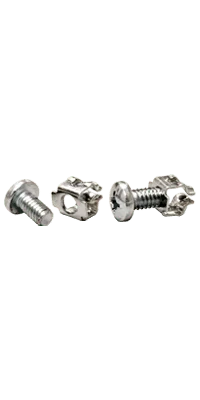

HKDZ-25 https://www.amcoenclosures.com/wp-content/uploads/sites/4/2016/09/hkdz-25.png 25 pieces, Dzus easy insert hardware kit
