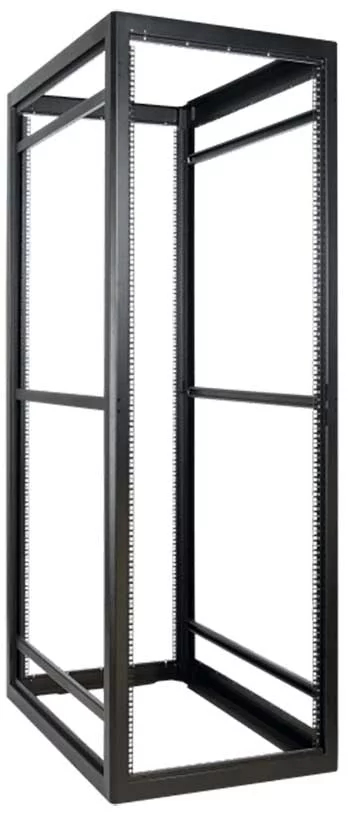

Titan DT

AMCO Enclosures’ Titan DT server and network racks provide the industry’s highest load ratings for your IT infrastructure by utilizing multi-formed channels, a fully welded frame and side uni-struts. Titan network racks are great for growing data centers and start-ups alike. Millions of network cabinet and server rack configurations are available as standard, and custom modifications and designs are available upon request. To purchase a custom network rack cabinet size or design request, contact our team today, so we can get to work.

All Titan DT racks have a 10-year warranty on materials and workmanship. Browse our website to find out more about our data racks.

Certified Load Ratings:

Static: 5,400 lbs.

Dynamic: 3,300 lbs.

Features:

  • Heights: 52U, 48U, 44U, 42U
  • Widths: 24”, 29”, 32”
  • Depths: 36”, 42”, 45”, 48”
  • Custom sizes and designs available upon request
  • Contemporary design aesthetic
  • Individually numbered RUs for easy equipment identification
  • Four ground studs in each corner of the base for grounding
  • Four 1,000 lb. leg levelers for ground support
  • Joining hardware kit
  • Available in 11 standard colors
  • Custom branding available

Mounting Channels:

Mounting Channels

Mounting channels are capable of moving completely forward or backward within the rack to provide precise equipment adjustments. Mounting channels feature an M6 square-hole pattern and have individually numbered RUs for each rack unit, resulting in fast and easy equipment installation. All Titan DT mounting channels have a durable black powder coat finish.

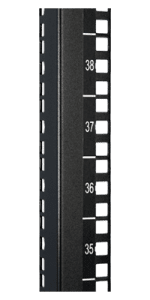

MCX ProfileFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

For standard 19″ mounting on 24″ overall rack widths (24″ width frames require two pairs of MCX mounting channels per frame)

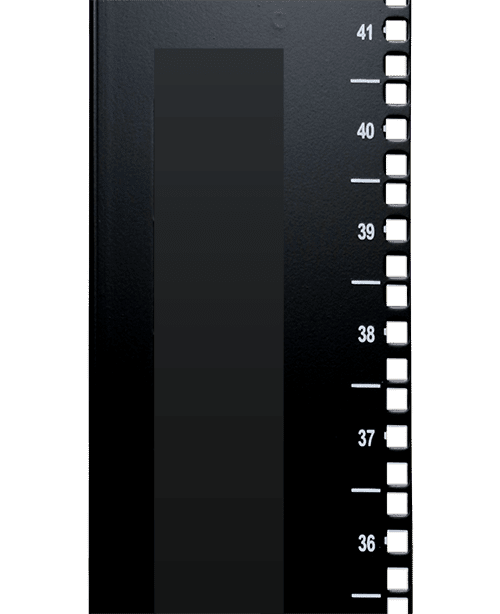

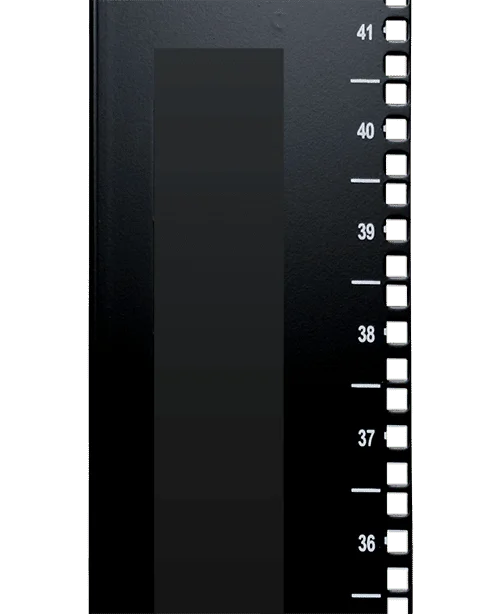

MCW Profile Reducer

  • Provides 19″ front-mounting space in a 29″ or 32″ overall rack width
  • 1 RU cutouts with plastic covers

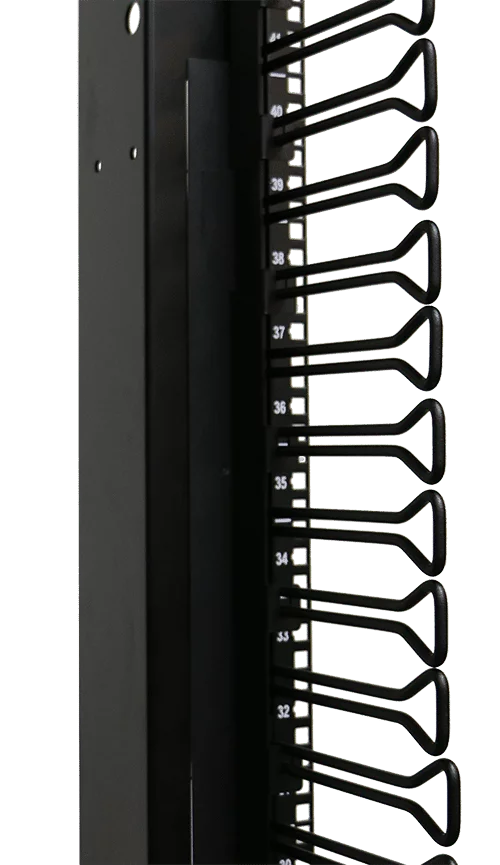

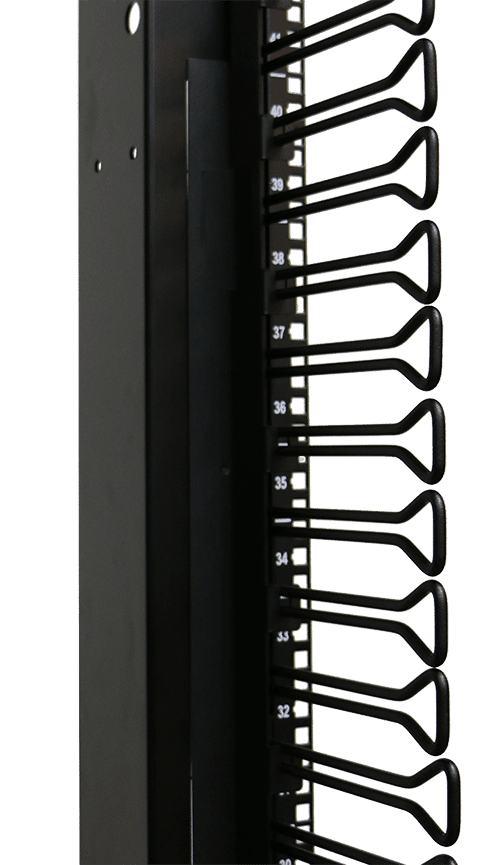

MCW Profile Reducer 1RU Finger Channels



  • Provides 19″ front-mounting space in a 29″ or 32″ overall rack width
  • 1RU wire finger managers provide cable management support to individual RUs in rack
  • Metal fingers have a depth of 7.25” to accommodate larger cable bundles with a usable depth of 6”
  • 1RU cutouts with plastic covers
  • Brush to cover cutout can be ordered separately

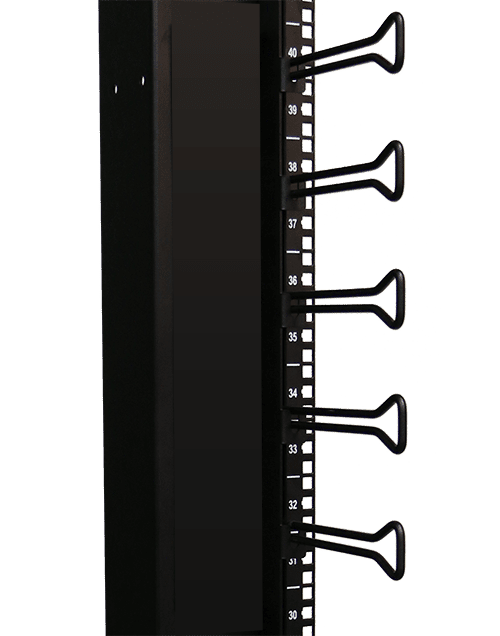

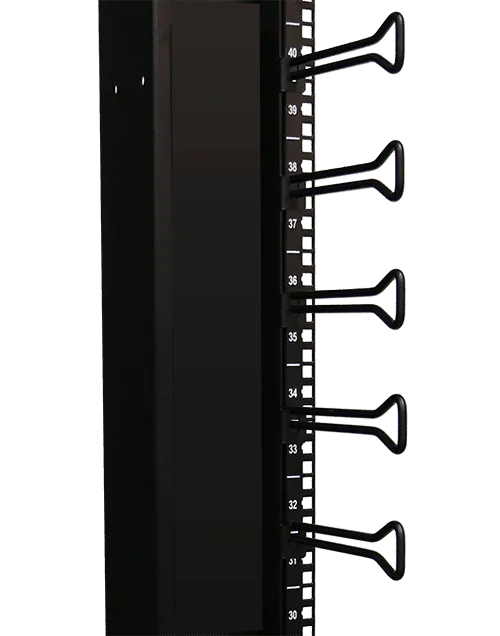

MCW Profile Reducer Finger Channel Features



  • Provides 19″ front-mounting space in a 29″ or 32″ overall rack width
  • 2RU wire finger managers provide cable management support to individual RUs in rack
  • Metal fingers have a depth of 7.25” to accommodate larger cable bundles with a usable depth of 6”
  • 1RU cutouts with plastic covers
  • Brush to cover cutout can be ordered separately

Panels:

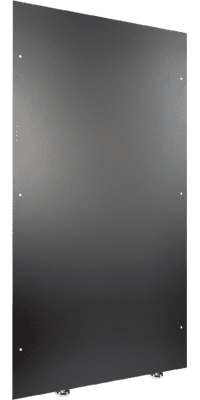

Side Panels

Side panels have been designed for use as baffle panels to contain thermal loads within a rack, or as side panels to close off an existing side of a rack. Side panels mount within the side perimeters of the rack for a flush design aesthetic.

Side Panel Features

  • Keyed lock keeps panels secure
  • Latches provide easy on/off mechanism

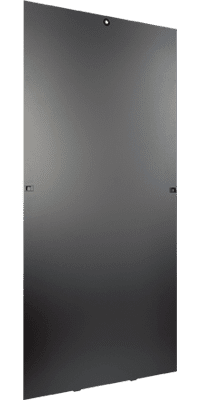

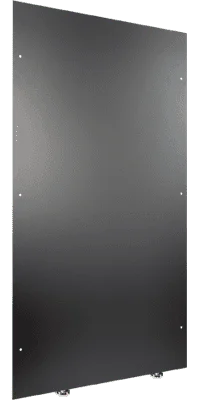

Side PanelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Cable Management Side PanelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Top Panels

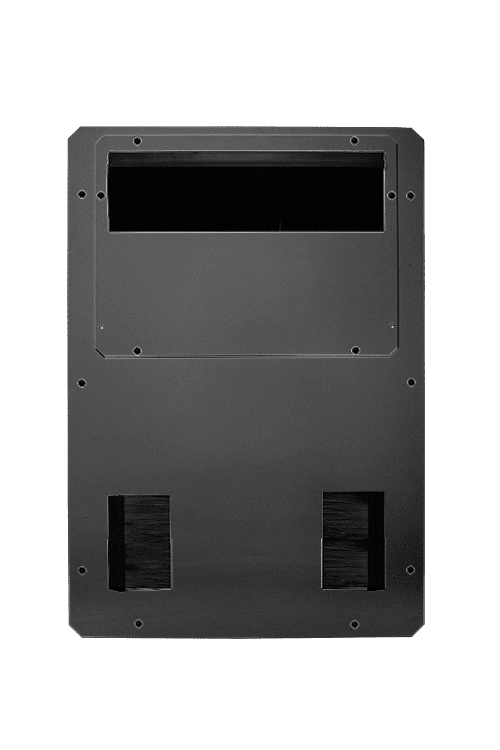

Titan DT top panels provide expanded options to address today’s cooling and cabling requirements. Top panels provide an additional level of security as they are bolted directly to the top of the rack. Each panel features multiple cable egress ports, which include dust covers for when not in use (not available on Dual Brush Strip Top Panel)

Solid



  • One-piece solid-plate construction sits within the top of the rack

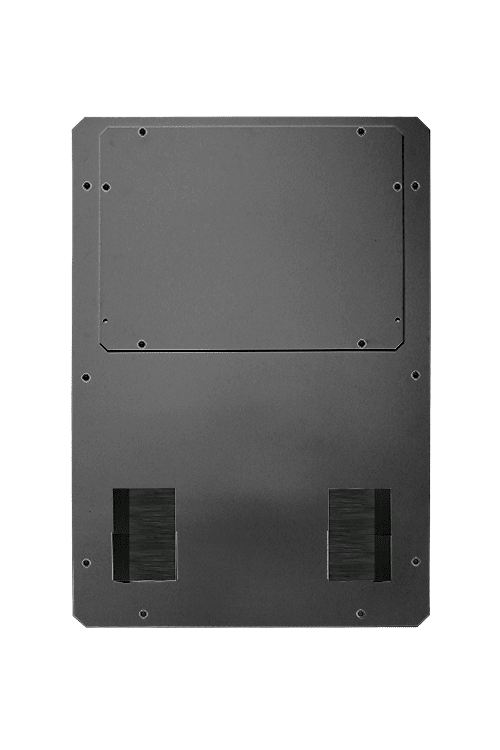

Cover Plate



  • Two-piece, solid plate construction with removable solid cover plate

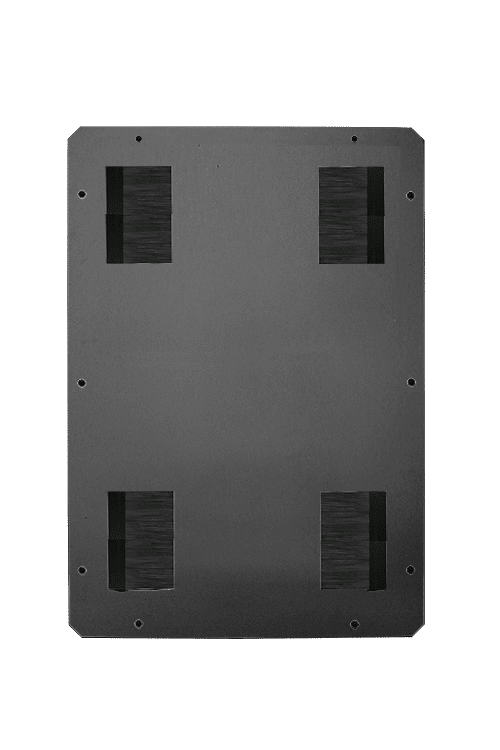

Brush Strip



  • One-piece construction with three removable brush strip sections

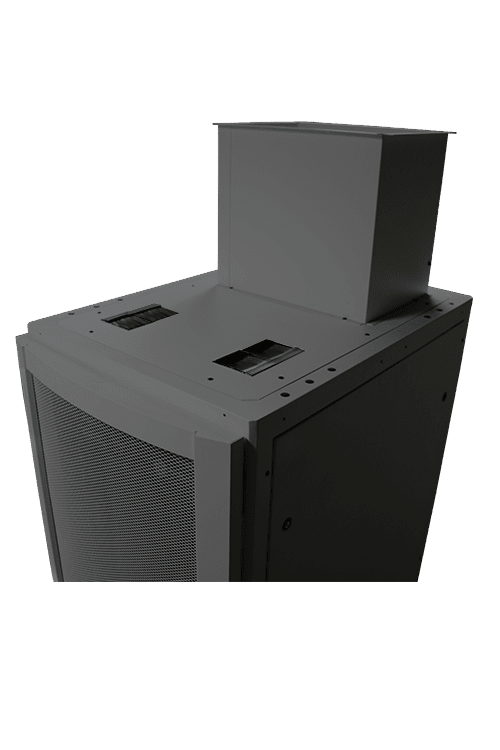

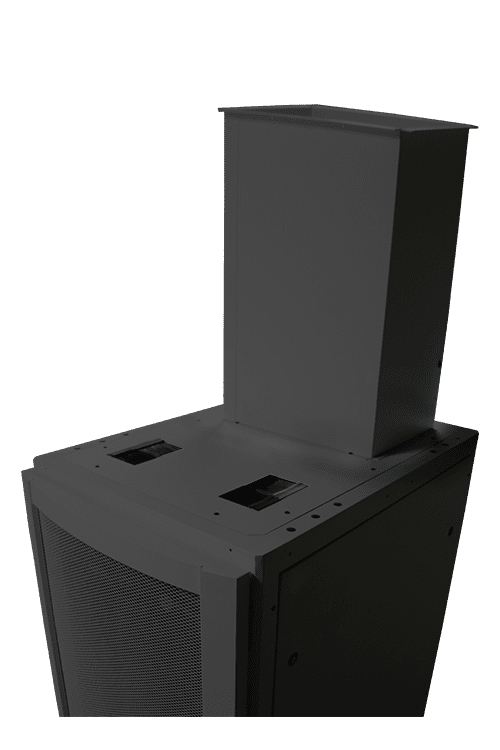

Chimney



  • Chimney solutions prevent hot and cold air mixing in the cabinet. Kit includes top panel, air deflector and top exhaust duct

Doors:

Face Doors

Face mount doors mount to the rack’s exterior surface.

Door Features

  • Concealed hinges offer easy on/off release
  • Doors can be mounted as either left-hand or right-hand
  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

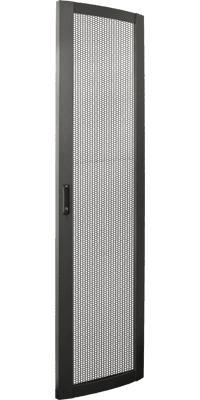

Curved-Face Vented DoorFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Flush Doors

Titan DT Flush mount doors mount flush to the exterior of the frame. Solid inserts are available to close off vented areas when the Overhead Chimney Solution is used.

Door Features

  • Concealed hinges offer easy on/off release
  • Doors can be mounted as either left-hand or right-hand
  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

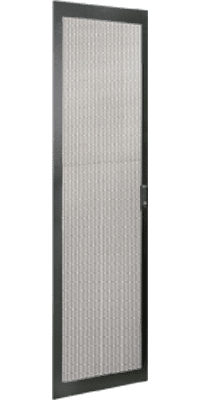

Vented Flush DoorFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

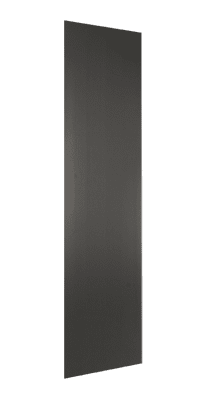

Vented Flush Door with Solid InsertFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
French Doors

Titan DT French mount doors mount flush to the exterior of the frame. French doors are available to decrease swing radius versus full-width doors. This maximizes design efficiency within the data center. Solid inserts are available to close off vented areas when the Overhead Chimney Solution is used.

Door Features

  • Vented doors feature a 77% open airflow pattern, exceeding major OEM/equipment vendor requirements
  • Swing handles with keyed locks
  • Combination swing handle locks optional
  • Locks can be ordered keyed alike or separately. (Keyed separately option quoted upon request)
  • Optional solid inserts for flush doors available when thermal requirements change

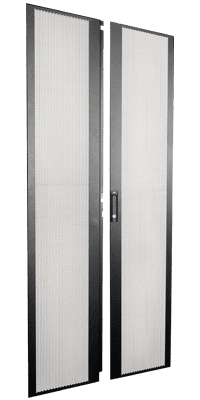

Vented French DoorFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

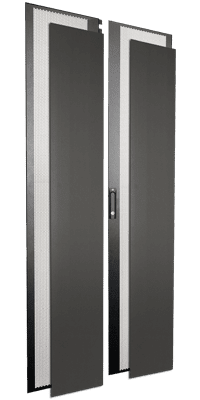

Vented French Door with Solid InsertFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Shelves:

Shelves

Heavy duty shelves are 1.75″H (1RU), fit 19″ width panel openings, and have depths of 17″ up to 40″. They are available in solid or vented models and are load-rated to support up to 250 lbs. Shelves mount to the front and rear of the mounting channels.

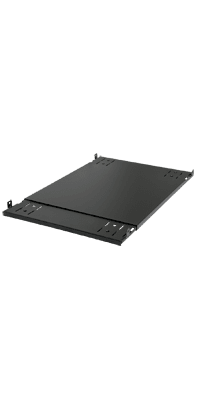

Solid Heavy Duty ShelfFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Vented Heavy Duty ShelfFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Cable Management:

Vertical

Available in four rack heights and two widths, power/cable panels mount in the rear of the rack and provide mounting support for PDUs and cable bundles. Power/cable panels have a combination of keyhole pattern slots, M6 square holes and cable egress ports. Cable lacing strips have a combination of M6 holes for cable ring mounting (HK-CR1) or equipment tie-down, while the slots can accept cable ties, fasteners, etc.

Vertical Cable Management Features

  • Tool-less mounting makes PDUs mounting fast and easy
  • Frees up additional RU space in a rack as PDUs are mounted to the panel rather than in the panel opening
  • Properly organized cabling and PDUs at the rear of the rack do not block hot air exhausted from the back of servers. Hot, trapped air increases back pressure and results in higher thermal loads
  • Panels are an efficient cable management solution that neatly organizes your cable bundles

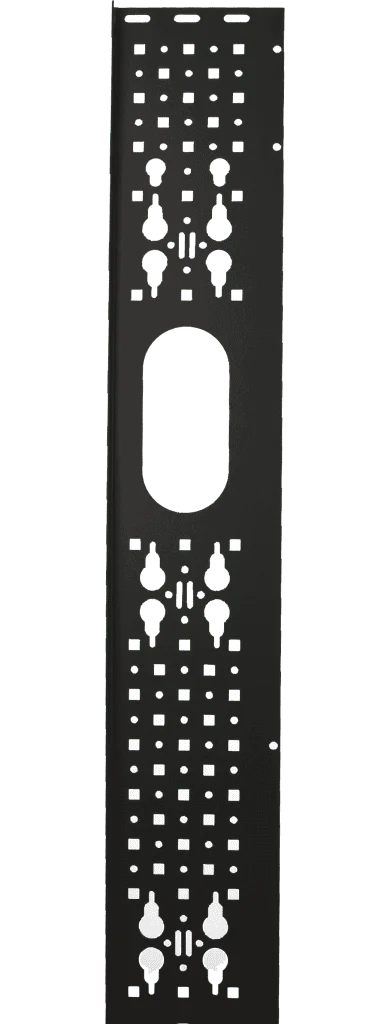

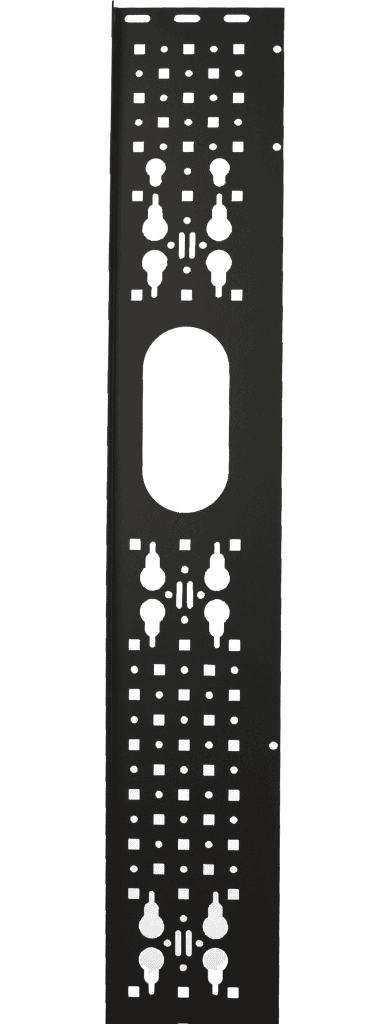

Power/Cable Panel
Cable Lacing StripFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

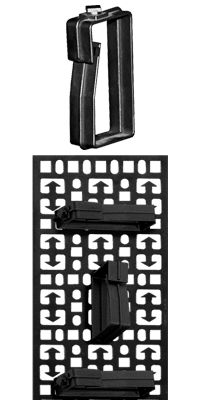

Cable Ring KitFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

Cable rings easily mount to M6 holes in power/cable panels or cable lacing strips and provide an immediate tie-down point for cabling. Sold in packs of 10.

Horizontal

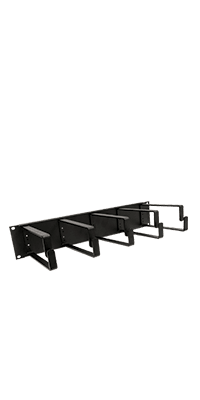

HCM Panels have a 2RU panel height (3.50”) and feature 10 ga. steel construction. Available in 4” and 7” depths.

HCM4 – 4” Depth HCM7- 7” DepthFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Cable Raceways

TitanDT offers cable raceways for large bundle drops of cabling or power strip mounting between racks. It takes 0RU, organizes cable and power requirements neatly and works against heat buildup that blocks exhausted air at the rear of the rack.

Cable Raceway KitFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

  • Create your choice of 6 or 8  width openings between racks for cable management
  • Includes choice of solid or vented front door, back panel and choice of 1RU or 2RU fingers that are 9.25 deep
Cable Raceway Kit Without Back PanelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

  • Same sizing options and components as above, except back panel is not included
  • Includes choice of solid or vented front door and choice of 1RU or 2RU fingers that are 9.25 deep
Cable Raceway DoorsFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

  • Same sizing as above cable raceway kits
  • Available in solid or vented, providing easy access to cabling between two racks

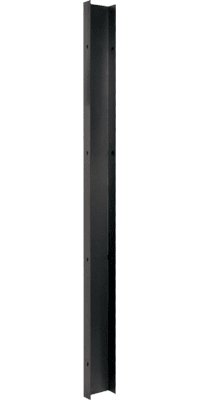

Spacer PanelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

  • Sized as all components above
  • Creates space between racks that requires no access to the cabling

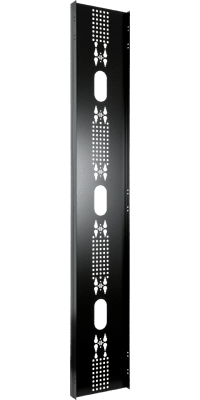

Back PanelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

  • Sized same as components above
  • Used for cable management or power strip mounting between racks
  • Note: Also offered with 1RU or 2RU fingers

Cooling:

Network Switch Cooling Solution

Network switches typically have a large volume of cabling associated with them. The heat they generate must be redirected from side-to-side and front-to-rear. AMCO has created a passive solution for switch applications.

Note: Network Switch Cooling Solution includes top panel, baffle panel, and vented rear door.

Note: Customer must select front raceway option of equal width to use with Network Switch Cooling Solution (ie. cable raceway door, cable raceway kit, etc.) Also must select a side panel and door.

Network Switch Cooling SolutionFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Overhead Chimney Solution

Isolating and containing the heat within the rack and directing it back into the overhead CRAC and CRAH systems is an effective passive cooling solution for high-density racks. Chimney solutions prevent hot and cold air mixing in the cabinet, as well as hot air recirculation to the front of the rack. These systems are cost-effective and efficient, reducing the cost of over-cooling your data center. Kit includes top panel, air deflector, and top exhaust duct.

20″-35″ Height
35″-60″ Height

Other Accessories:

Power

AMCO Enclosures understands the importance of power in today’s rack environment. We offer a select grouping of standard vertical and horizontal 15A and 20A power strips for typical day to day designs. We can also provide metered, monitored, switched PDU’s and environmental units – in expanded 30A -120A models. A variety of cord lengths are available as well as other options.

Features

  • Flexible designs
  • Variety of cord lengths
  • Made in the USA

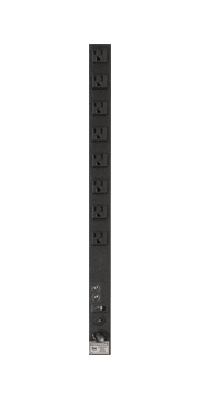

Power StripFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

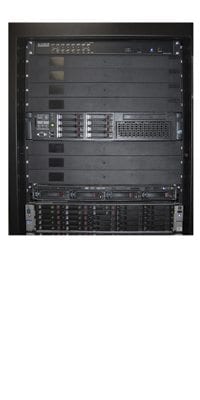

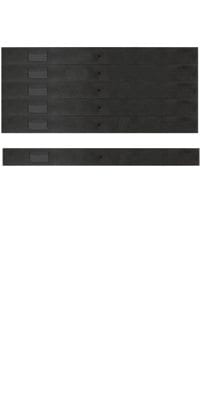

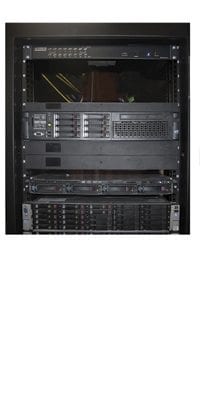

6RU Tool-less Blanking Panel - Plastic

Lower your TCO and increase your racks energy efficiency. Blanking Panels help control airflow in your rack by blocking off open RU spaces. 6RU sheet can be snapped apart and used in 1RU thru 6RU sections.

Blanking Panel Features

  • Very Affordable
  • Tool-less
  • Cover empty spaces in panel openings
  • Optimize air circulation – Cut cooling costs
  • Lightweight plastic per UL94
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

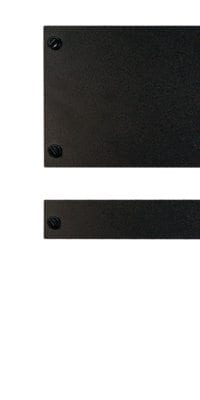

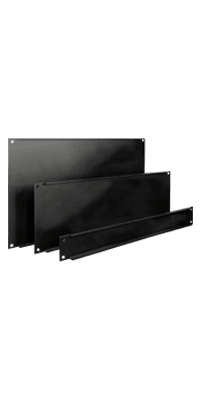

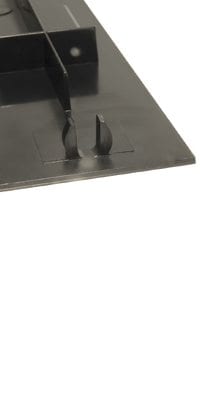

Tool-less Blanking Panel - Steel

Lower your TCO while increasing your racks energy efficiency. Help control airflow in your rack by blocking off open RU spaces using blanking panels. AMCO Tool-less steel blanking panels are available in 1, 2, 3, 4 and 8RU.

Blanking Panel Features

  • Tool-less
  • Cover empty spaces in panel openings
  • Optimize air circulation

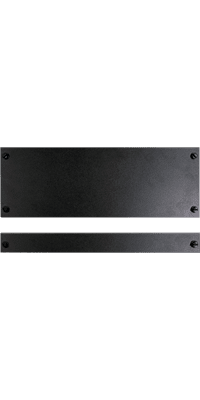

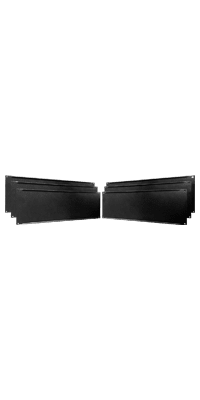

Blanking Panel – SteelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – SteelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – SteelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Blanking Panel – SteelFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Also available in AluminumFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

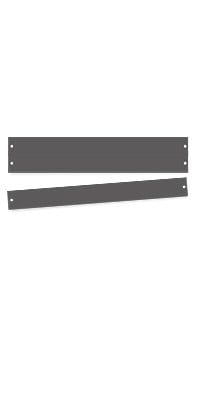

Formed blanking panels are aluminum and also available individually or in kits.*Not available in tool-less.

Adjustable Chassis Guides

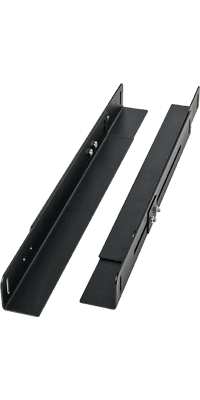

Chassis guides have a 2″ H x 2″ W profile and are fully adjustable front-to-rear, for rack depths 25″ through 33.75″. The flanges support component-mounted hardware in a minimal profile. Chassis guides support up to 125 lbs. and feature a black, durable powder coat finish.

For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)
Casters

Data centers sometimes require casters for mobility. Light duty casters are used to roll in and place empty cabinets and heavy duty casters are used when moving populated cabinets.

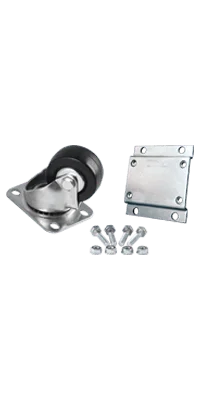

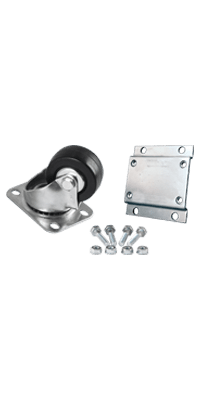

Light Duty CasterFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

175 lbs. load rating

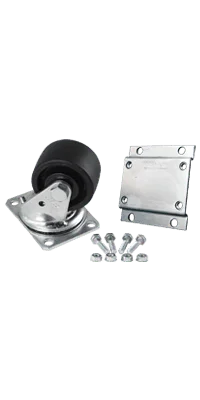

Heavy Duty CasterFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

1,200 lbs. load rating

Hardware Kits

Each rack ships with 50 ea. Dzus M6 inserts and screws to make mounting hardware/components easy to install. Additional mounting hardware is available for equipment mounting.

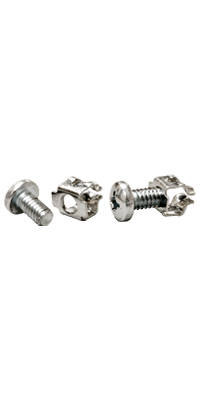

M6 HardwareFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

HKM6-25 or 50: M6 hardware includes 25 or 50 screws for equipment mounting.

Dzus M6 HardwareFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)HKDZ-25 or 50: M6 Metric Dzus includes 25 or 50 easy inserts and M6 clear chromate screws.
Joining Brackets

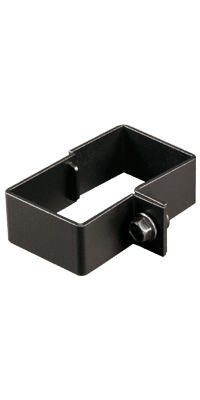

FJB-TN: Frame joining bracketFor standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

FJB-TN: Frame joining bracket. For joining frames that have equipment already installed. Sold separately.

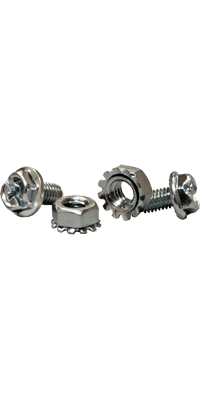

HK-R-TN: Frame joining kit (8 pieces)For standard 19" mounting on 24" overall rack widths (24" width frames require two pairs of MCX mounting channels per frame)

HK-R-TN: Frame joining kit (8 pieces) included with each cabinet.

MLR Handles

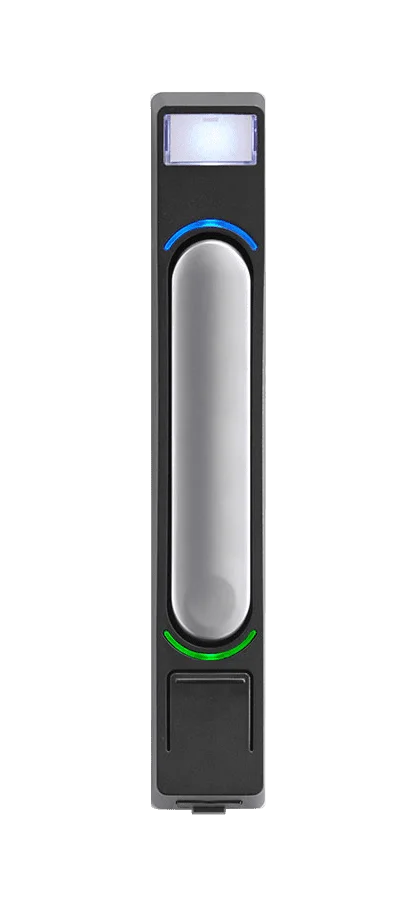

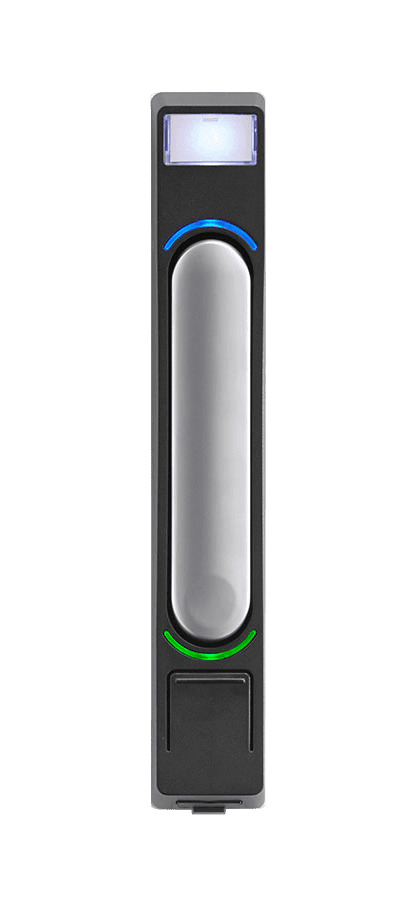

MLR1000

Mechatronic Lock for Racks Utilizing Existing Management System

  • Integrates into any management system via an input/output system
  • Unlocks under dry contacts or by applying voltage
  • 12V and 24V compatible
  • Visually displays open/close status and relays information to the management system
  • End user supplies authentication method to ensure compatibility with existing management system
  • Retrofit into any existing rack (customized adapters available)

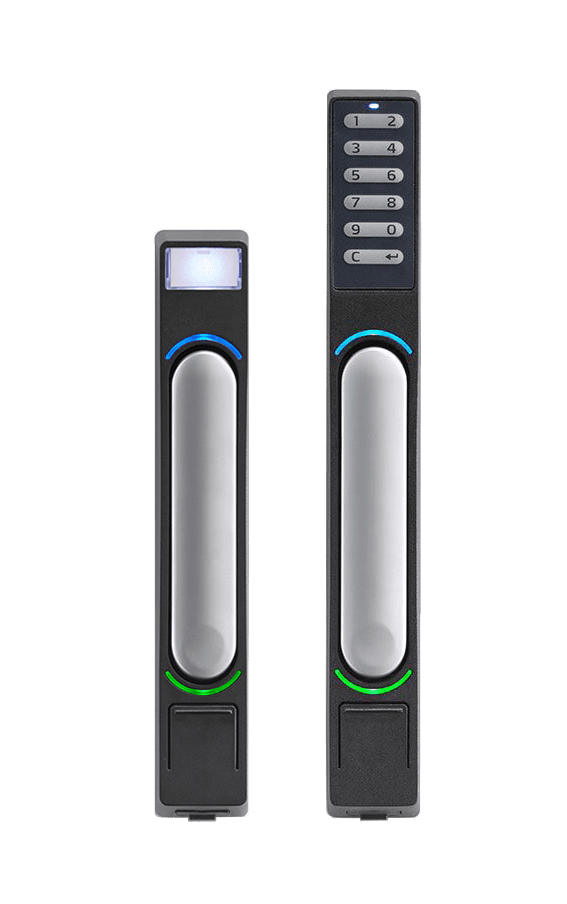

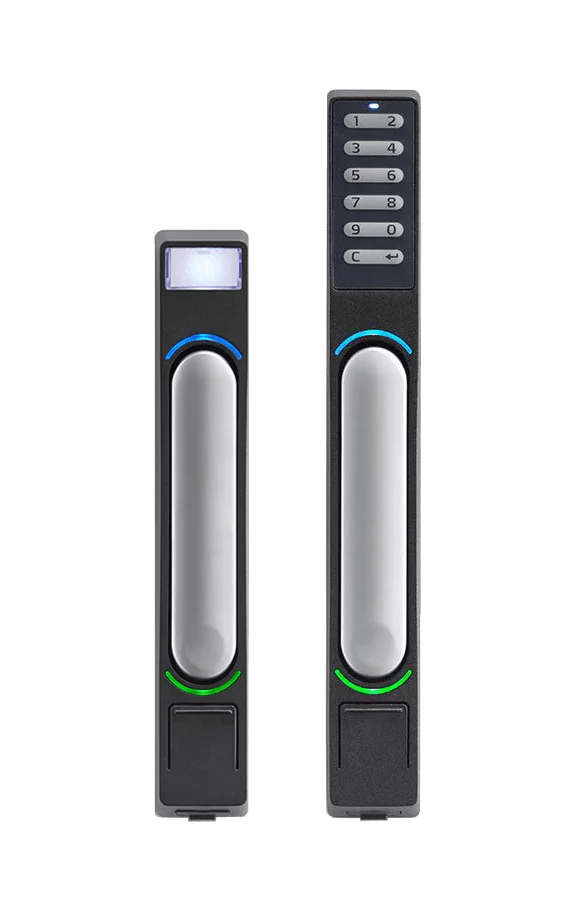

MLR2000 | MLR2000 KP

Mechatronic Lock for Racks Utilizing Existing Management System

  • Compatible with all RFID card types (1122 5kHz or 13.56MHz) *iC*iClass Elite Key available upon request
  • Dual-factor authentication (RFID + Keypad)
  • LEDs create visual alerts for authorized/unauthorized access
  • Upper LED is configurable via dip switch for unique identification
  • Retrofit into any existing rack (customized adapters available)

MLR3000 | MLR3000 KP

Mechatronic Lock for Racks Designed for High Density Data Centers

  • Integrates into the Administration Suite software (encapsulating data center security)
  • RS-485 bus system allows for one IP addressed gateway to manage up to 32 handles
  • Compatible with all RFID card types (125kHz or 13.56MHz)
  • Handle functions and audits in network down and power down state
  • One to four factors of authentication (RFID/Keypad)
  • LEDs create visual alerts for authorization, temperature, alarm and lock statuses
  • Retrofit into any existing rack (customized adapters available)

MLR5000 | MLR5000 KP

Mechatronic Lock for Racks Designed for Low Density Data Centers

  • Integrates into the Administration Suite software (encapsulating data center security)
  • Each handle is individually IP addressed
  • Compatible with all RFID card types (125kHz or 13.56MHz)
  • Handle functions and audits in network down and power down state
  • One to four factors of authentication (RFID/Keypad)
  • LEDs create visual alerts for authorization, temperature, alarm, and lock statuses
  • Retrofit into any existing rack (customized adapters available)
